WilsonPro Enterprise 4330 Signal Booster
Exclusive Offer: Get Personalized Pricing
This system is part of our exclusive collection that requires personalized consultation. To ensure you get the best solution for your needs, please call us at (888) 974-8237 or click the button below to request your custom pricing.
Product Overview
Product Overview

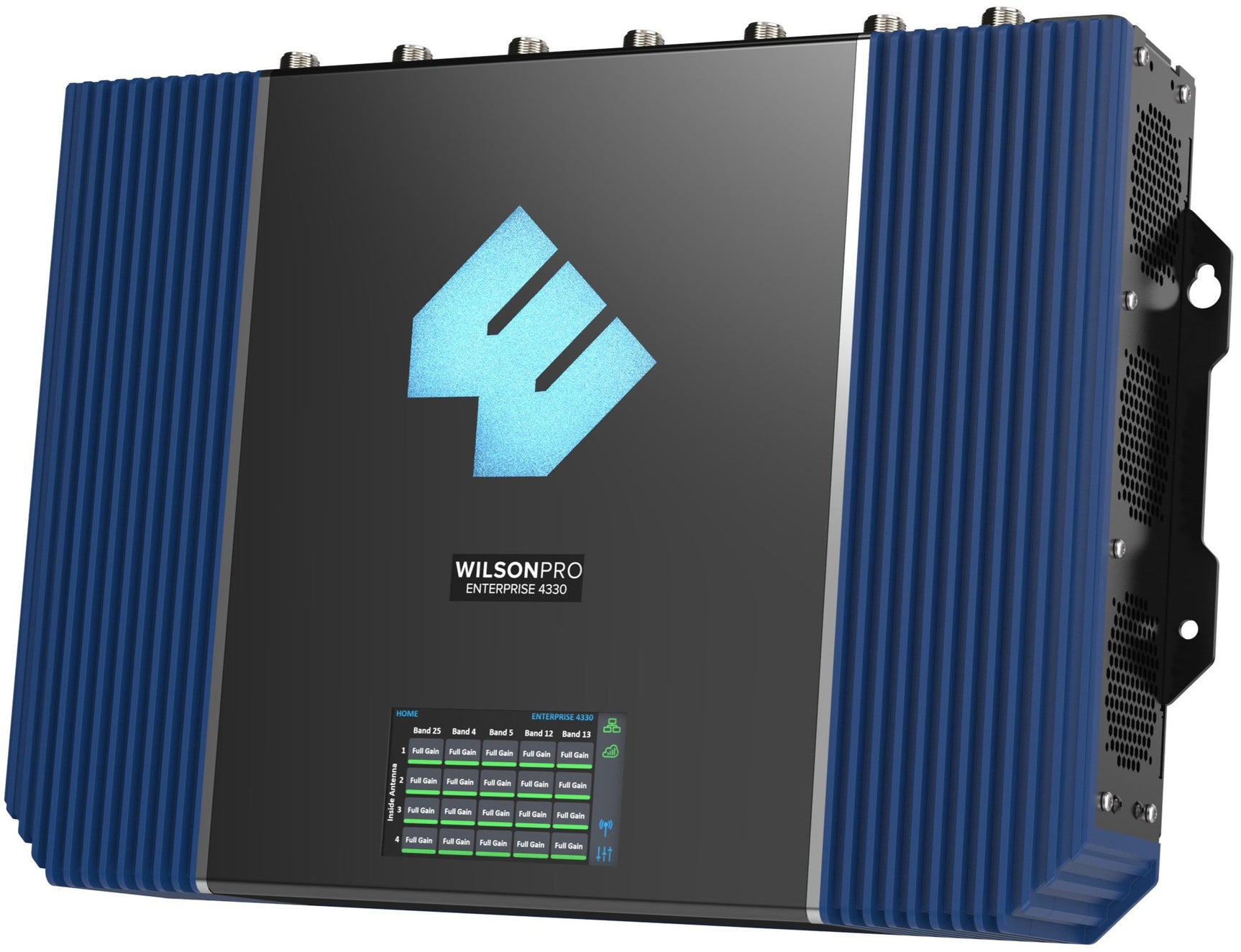

The WilsonPro Enterprise 4330 is a high-performance, in-building cell signal amplifier designed to enhance cellular coverage for large commercial environments. Supporting both 4G LTE and 5G networks, the 4330 provides reliable signal strength across up to 100,000 square feet. Ideal for office buildings, hospitals, and multi-story complexes, this system improves voice quality, reduces dropped calls, and delivers faster data speeds in areas where signal penetration is a challenge.
Key Features
- Wideband & Channelized Mode: Offers the flexibility to amplify entire frequency bands or specific sub-blocks for precise signal optimization, reducing interference and improving coverage quality.
- High Uplink & Downlink Power: With up to 26 dBm uplink and 17 dBm downlink power per port, the Enterprise 4330 provides strong, consistent cellular coverage across large spaces and multi-floor buildings.

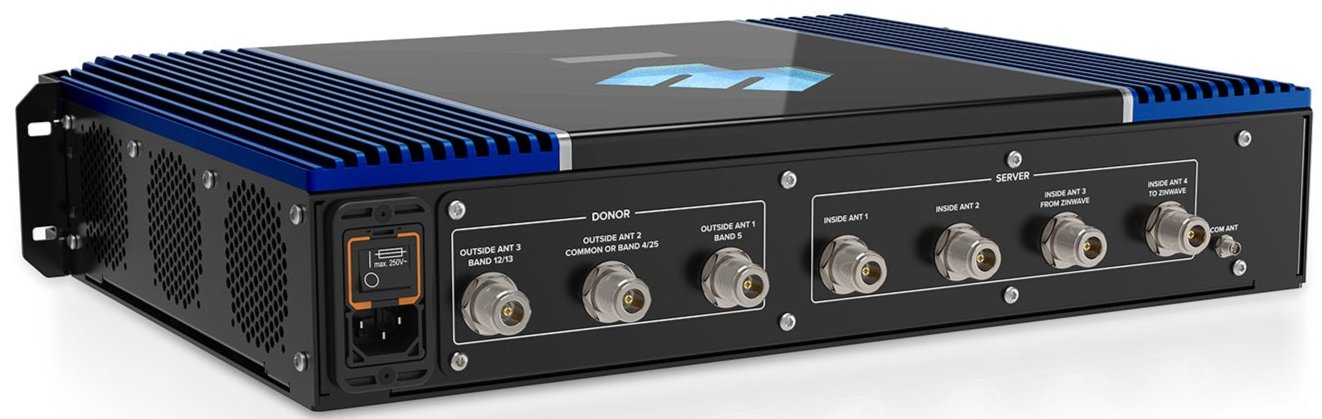

- Split Mode Capability: Allows for the use of multiple outdoor antennas targeting different cell towers, maximizing indoor signal distribution and enhancing overall system performance.
- Cloud-Based Monitoring: Integrated WilsonPro Cloud access allows for remote monitoring and management, ensuring system uptime and providing real-time performance tracking via LTE or Ethernet.
- Universal Carrier Compatibility: The Enterprise 4330 works with all major U.S. and Canadian carriers, including AT&T, Verizon, T-Mobile, and smaller regional providers, ensuring broad coverage for all devices.
- LCD Touchscreen: A user-friendly color LCD touchscreen provides quick access to system configuration, performance monitoring, and adjustments.
Extended Dynamic Range (XDR) Technology
XDR technology (Extended Dynamic Range) is a core feature of the Enterprise 4330, designed to prevent the amplifier from shutting down due to strong incoming signals. In areas with powerful external signals, traditional amplifiers can experience signal overload, resulting in system shutdown or reduced performance.
XDR automatically adjusts the amplifier’s gain to handle these strong signals without interrupting service, ensuring continuous, reliable operation. This feature is especially beneficial in urban environments or locations close to cell towers, where signal overload is more likely. XDR keeps the system running smoothly, delivering consistent coverage and preventing costly downtime.
Specifications
-
Frequency Bands:
- Band 12/17 (700 MHz)
- Band 13 (700 MHz)
- Band 5 (850 MHz)
- Band 4 (1700/2100 MHz)
- Band 25 (1900 MHz)
- Maximum Gain: 70 dB
- Impedance: 50 Ohms
- Connectors: N-Female
- Dimensions: 3.5" x 18.71" x 13.48"
- Weight: 18.3 lbs
- Power Requirements: 120-240V / 50-60 Hz
Included Components

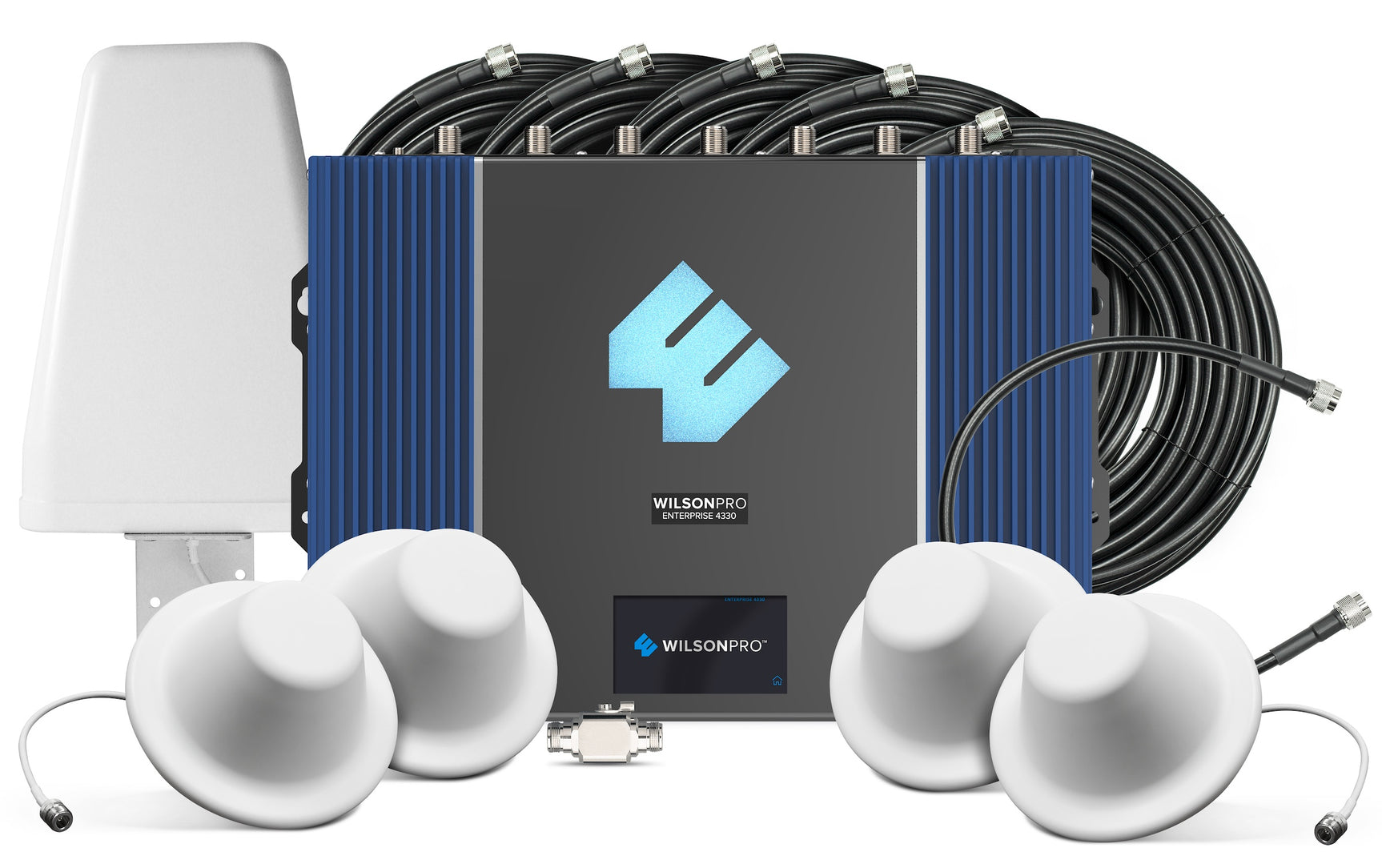

The WilsonPro Enterprise 4330 package includes all essential components for easy installation and optimal performance:
- Main amplifier unit

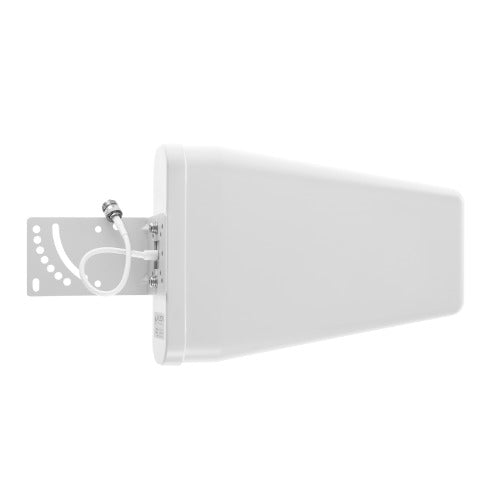

- Wideband directional outside antenna (314411)

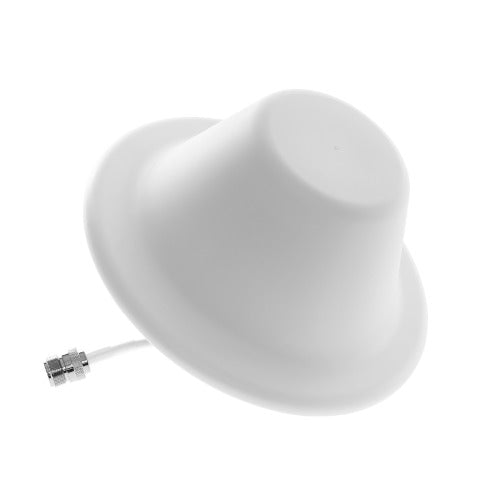

- Four dome inside antennas (304412)

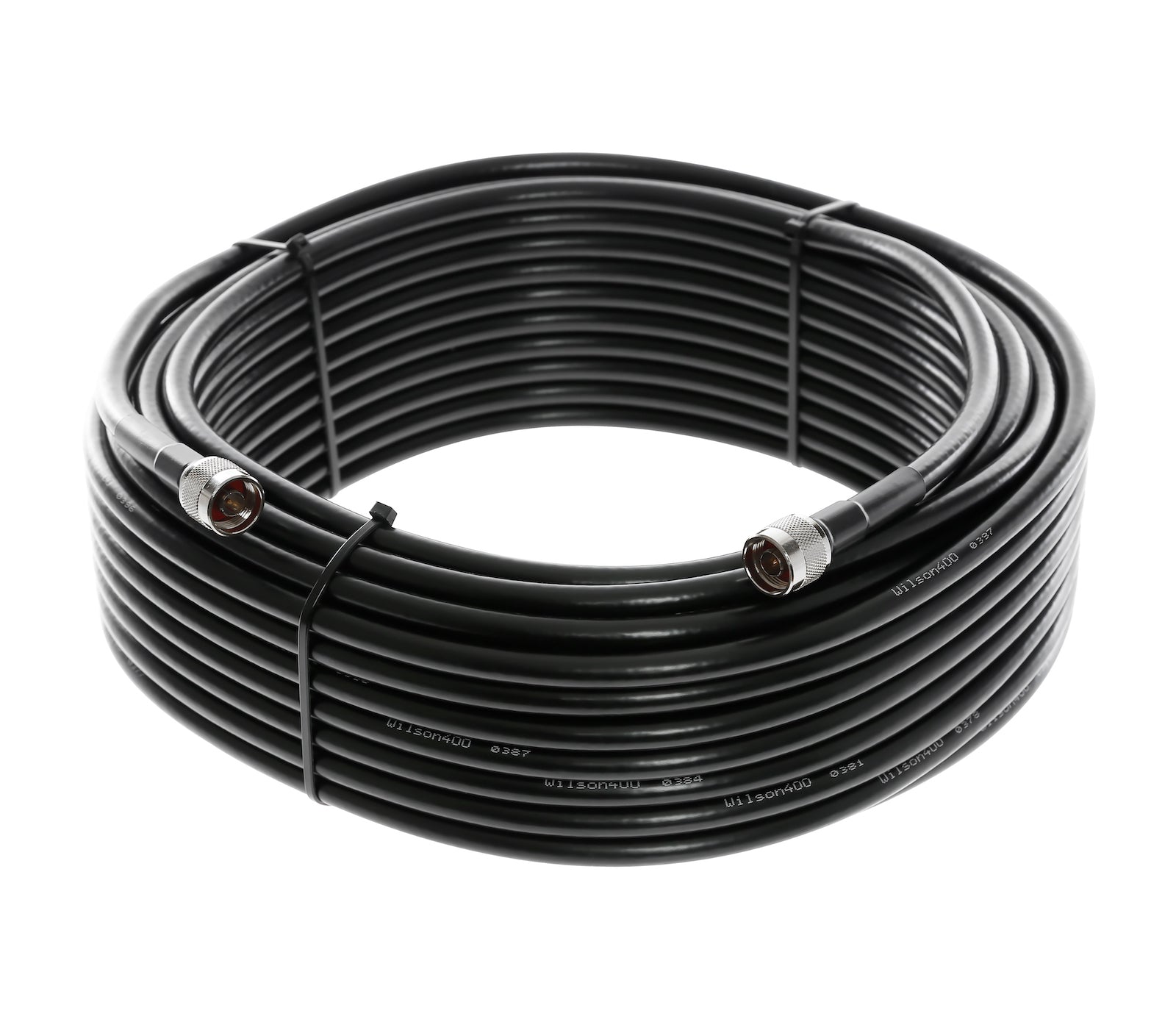

- Five 100-foot Wilson400 cables (952300)
- One 2-foot Wilson400 cable (952302)

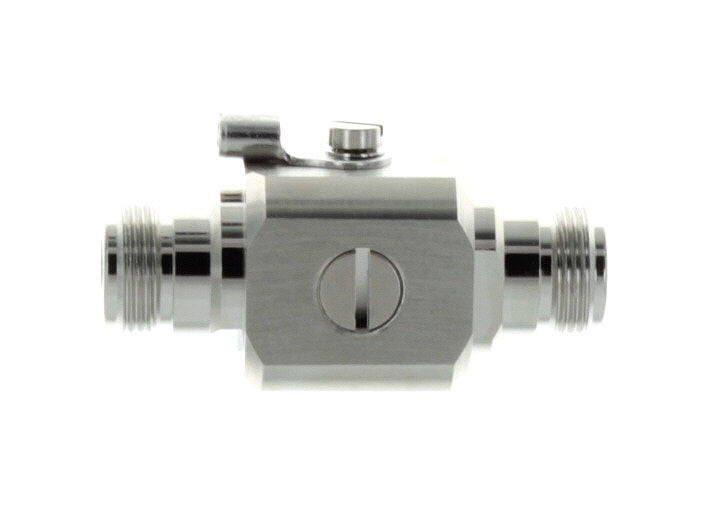

- 50 Ohm lightning surge protector (859902)
Who It's For
The Enterprise 4330 is designed for large commercial buildings, hospitals, warehouses, and office complexes that require consistent, reliable cellular signal coverage. It is particularly well-suited for environments with fluctuating signal strength or strong outside signals that can cause overload in traditional systems. The XDR technology ensures continuous operation, even in signal-rich environments.
Installation

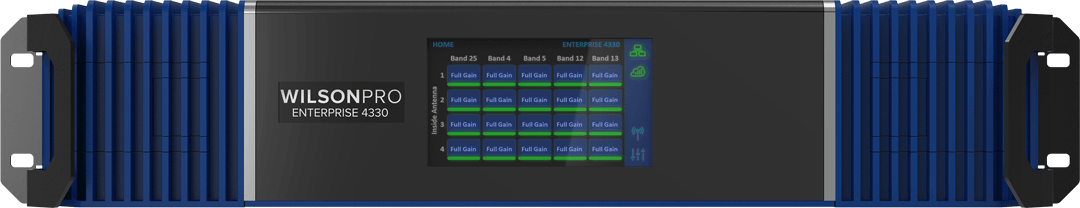

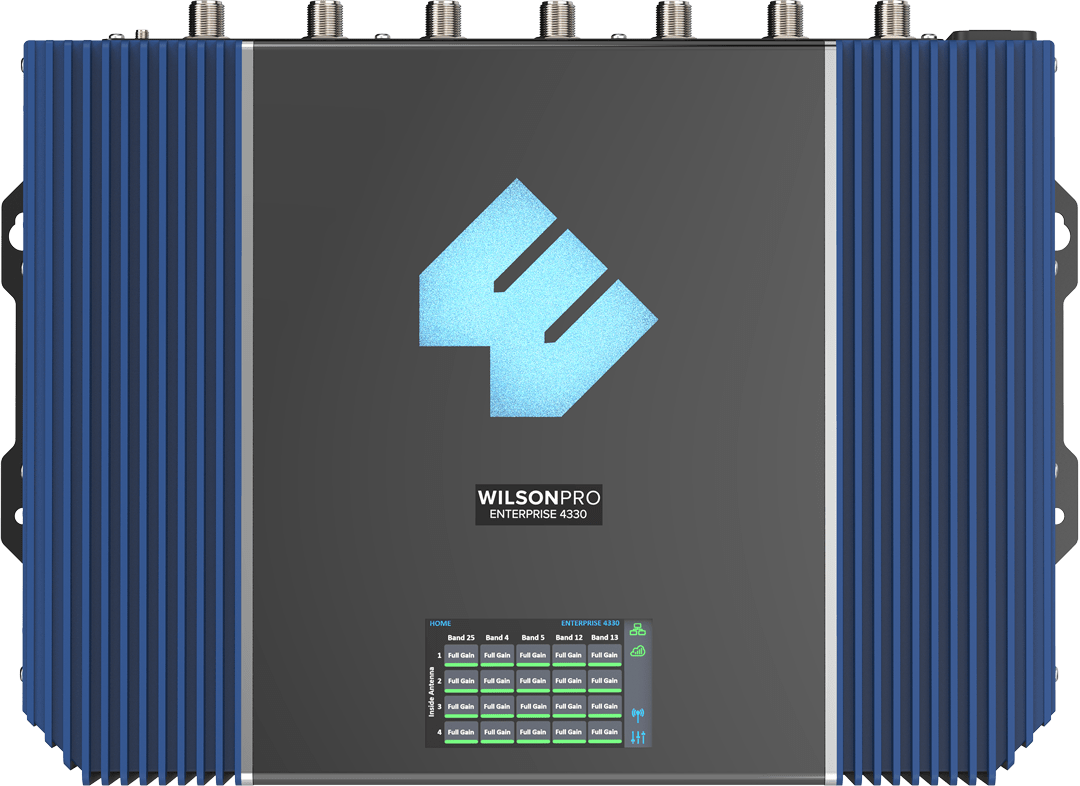

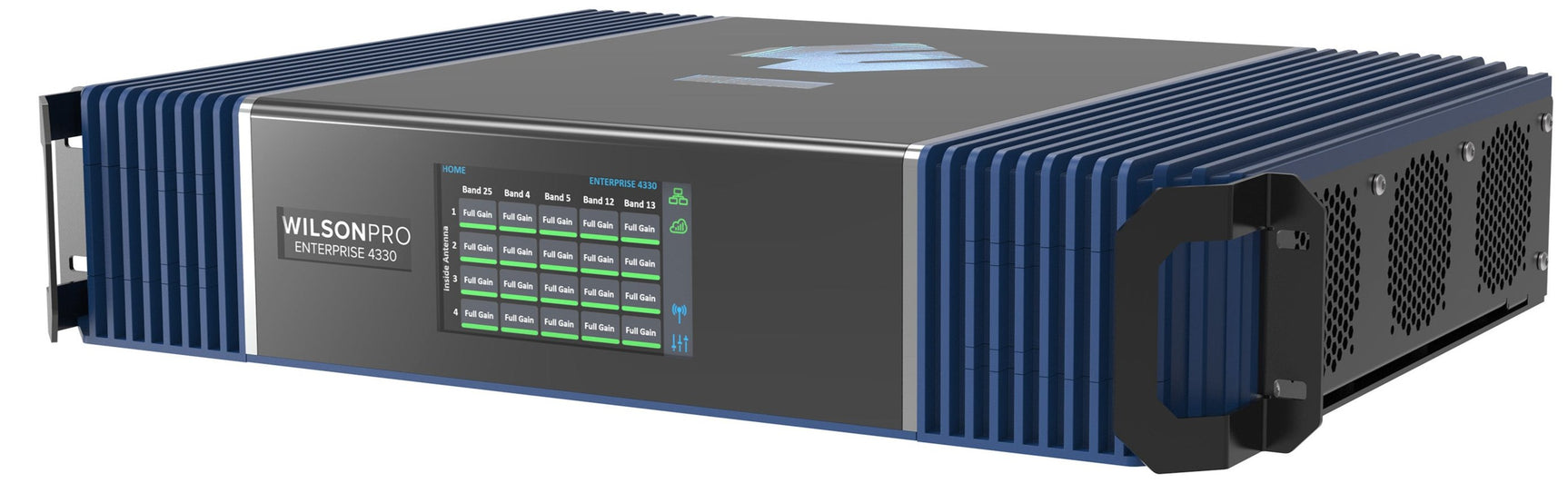

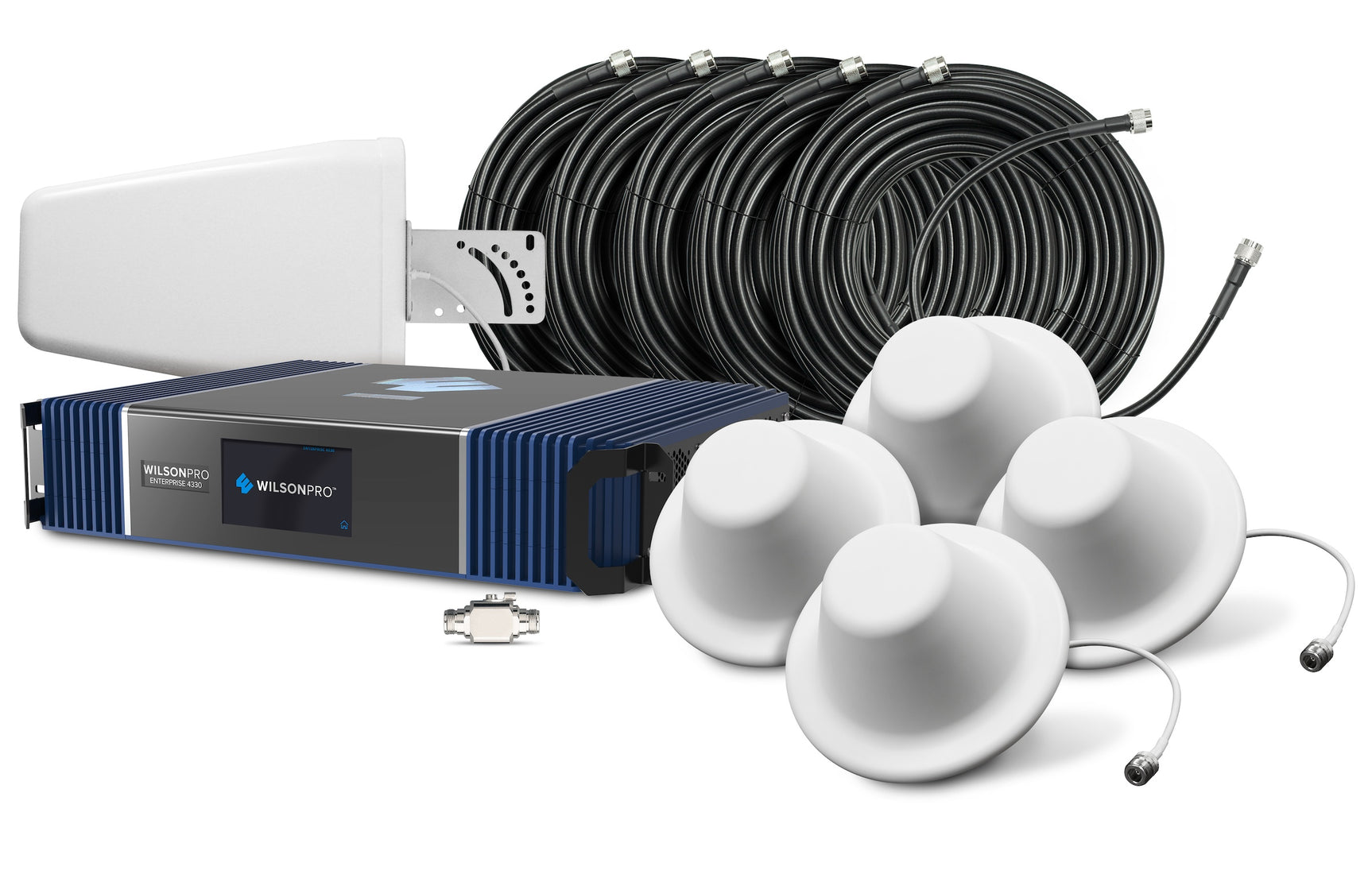

The Enterprise 4330 is available in both wall-mount (SKU 460075) and rack-mount (SKU 461075) configurations. The package includes all antennas, cables, and necessary components, making it ideal for professional installers seeking a comprehensive solution for large-scale signal amplification.
Please contact us for any additional questions.
