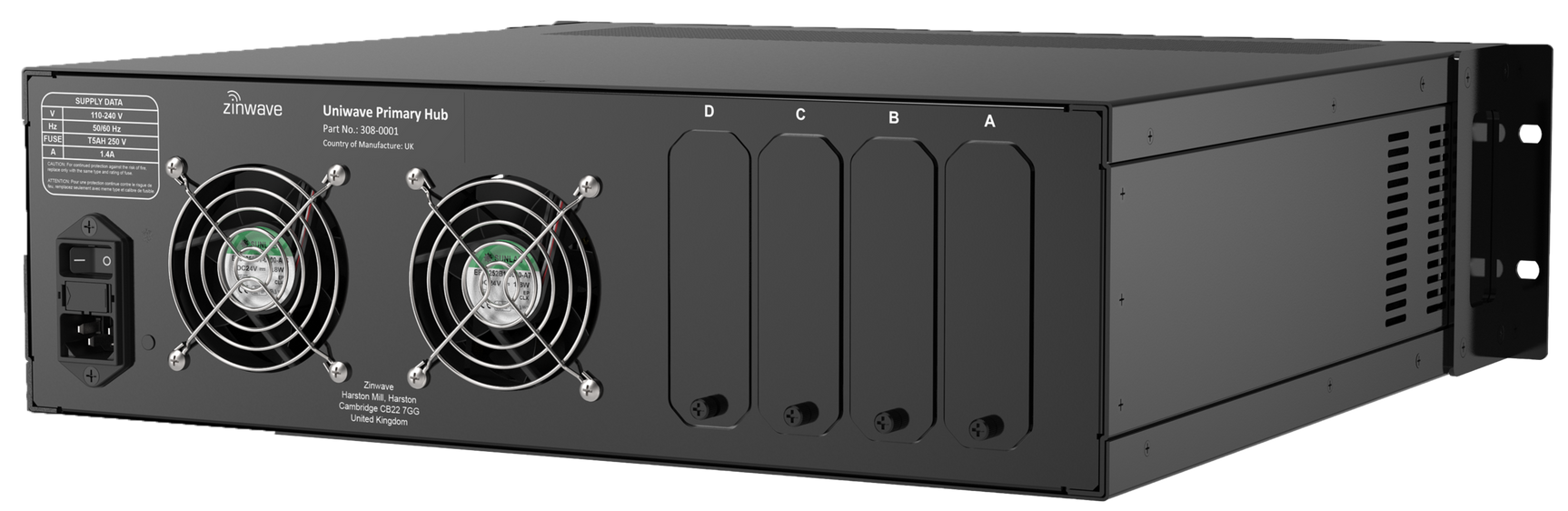

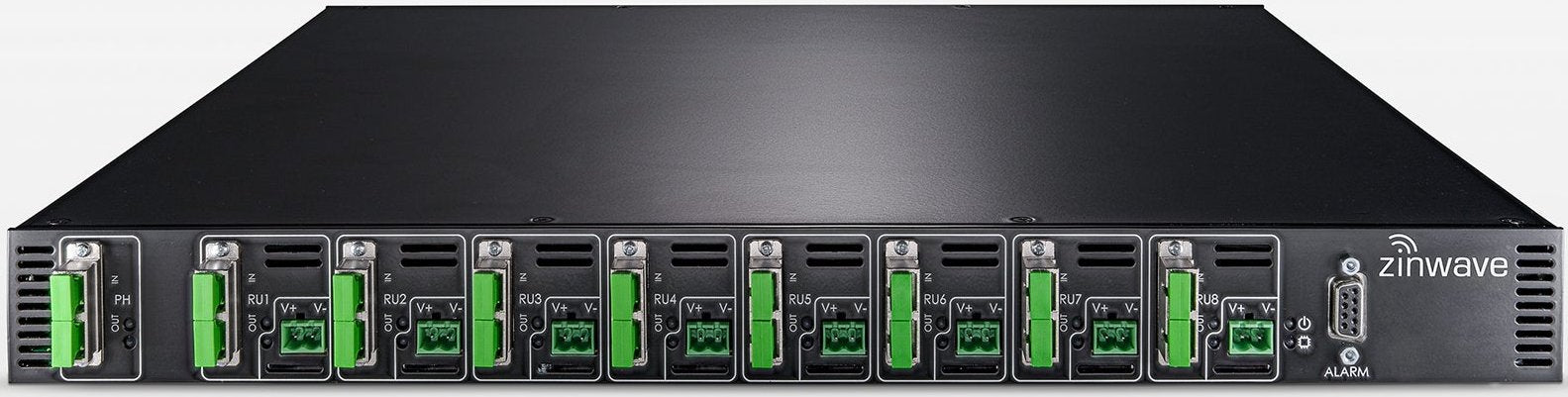

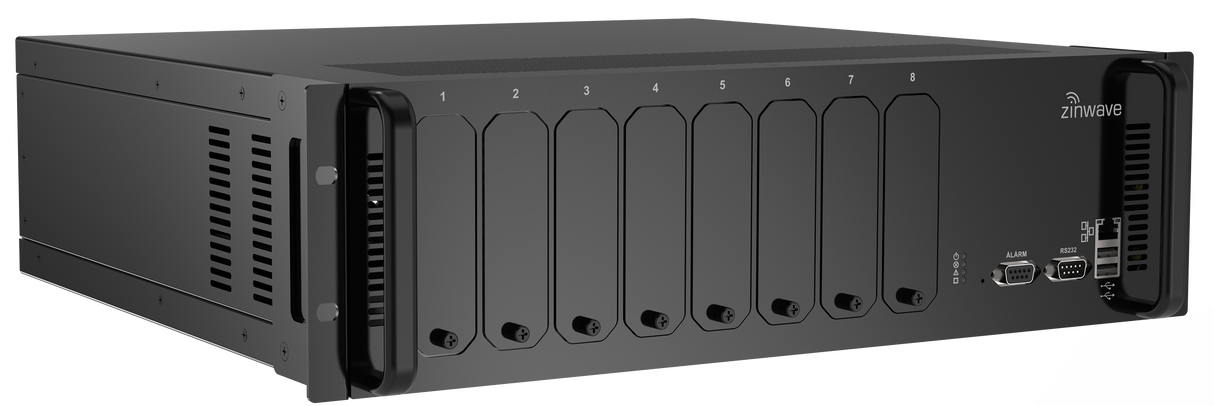

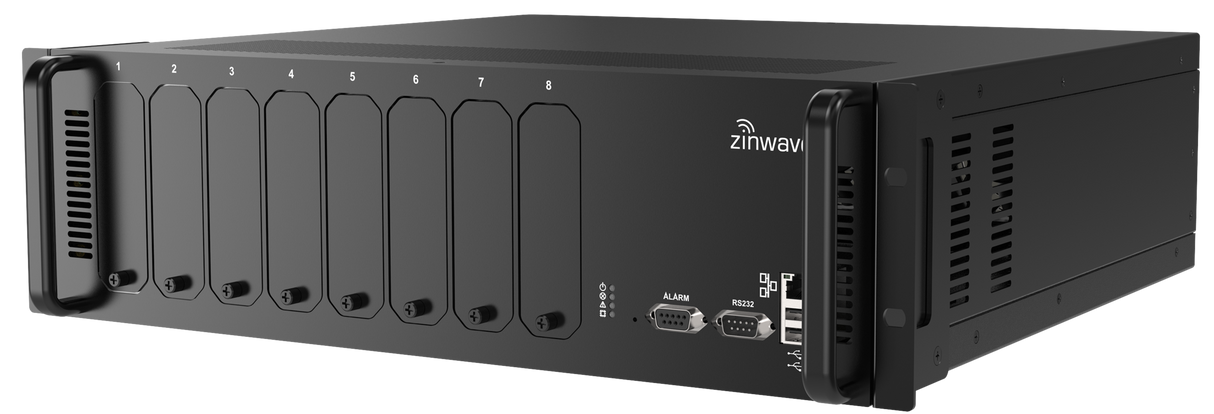

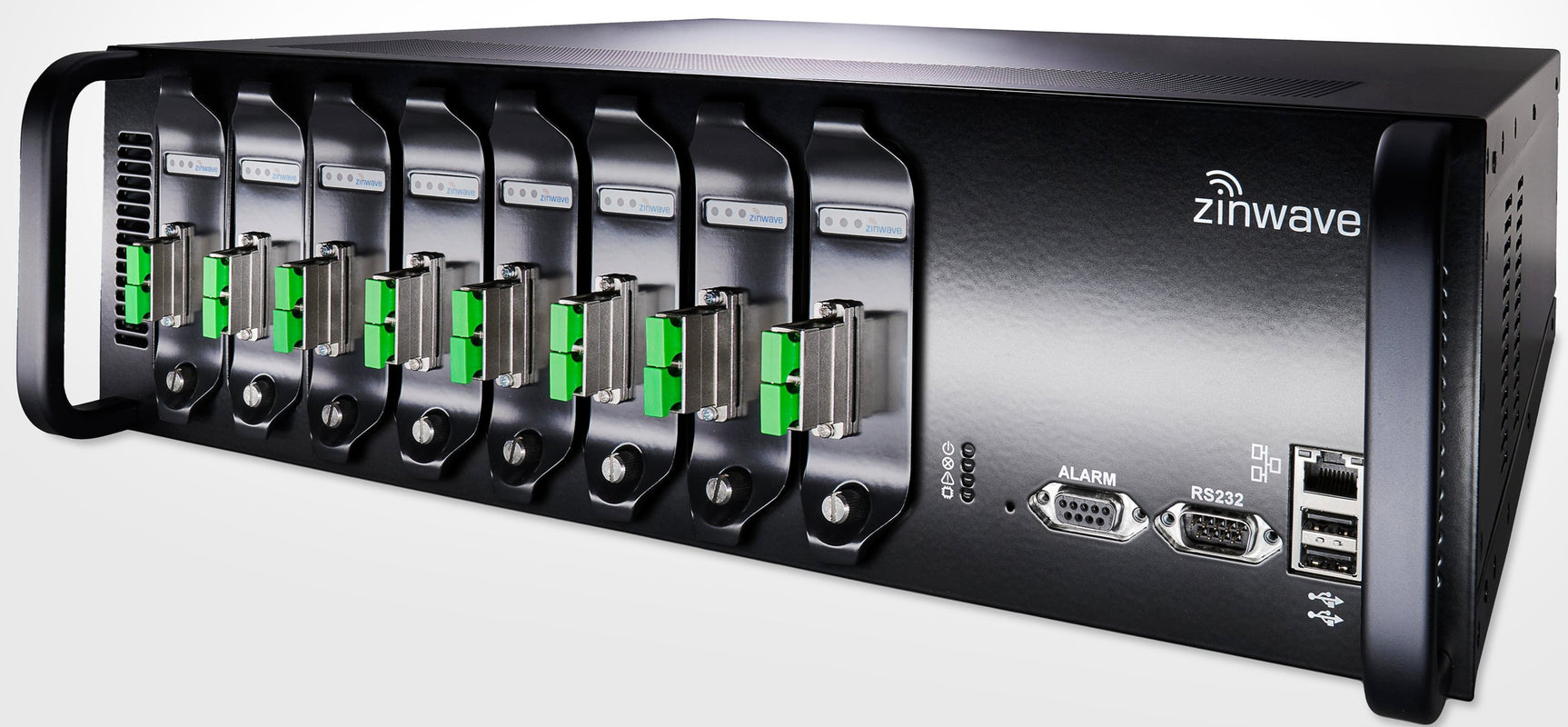

Zinwave Unitivity 5000

The Zinwave 5000 is designed for organizations that need reliable and seamless wireless coverage across large, complex spaces. Whether it’s airports, hospitals, corporate offices, or public venues, this solution ensures consistent communication by integrating multiple wireless services—like cellular, 5G, and public safety networks—into one system. With easy remote management, flexible connectivity, and a low-maintenance design, the Zinwave 5000 is ideal for environments where uninterrupted coverage is essential for both routine operations and critical communications.

Key Components and Features

• Multiple Input Ports: Equipped with 8 duplex and 8 simplex input ports, allowing the connection of different wireless services from cellular operators and public safety networks, ensuring smooth signal distribution across the system.
• Wide Frequency Compatibility: Covers frequencies from 600 MHz to 5000 MHz, supporting technologies like LTE, 5G, and emergency communication systems such as P25 and TETRA.
• High Signal Capacity: Each input port handles up to 5 watts of power, ensuring consistent performance even in high-demand situations, such as during peak traffic at airports or large events.
• Low Interference Design: With a PIM rating of -153 dBc, the Zinwave 5000 minimizes signal interference, ensuring clear and reliable communication across all connected networks.
• Remote Management and Control: Features Bluetooth and Ethernet connectivity, allowing users to monitor performance and adjust signal levels from a distance, ensuring smooth operation without on-site intervention.
• Precise Signal Control: Offers remote attenuation adjustments, with up to 24 dB on the downlink and 30 dB on the uplink, to optimize signal levels and coverage without creating interference.
• Efficient Cooling System: Uses convection cooling to maintain optimal performance without fans, reducing noise and maintenance needs.
• Space-Saving Design: Fits into a standard 2U rack, making it easy to install in equipment rooms or data centers with limited space.

Technical Specifications

• Frequency Range: 600 MHz to 5000 MHz
• PIM Performance: -153 dBc
• Maximum Input Power: 5 watts per port
• Attenuation Range: 24 dB (downlink) / 30 dB (uplink)
• Connectivity: N-type RF connectors, Bluetooth, and Ethernet
• Cooling: Convection cooling system
• Power Requirements: 110/240 VAC, auto-ranging, 30W
• Operating Temperature: -5°C to +45°C (23°F to 113°F)
• Environmental Rating: IP20 (Indoor use)
• Dimensions: 2U, 19-inch rack-mountable

Summary

The Zinwave 5000 is a powerful and flexible solution for modern organizations that rely on strong wireless communication. It combines multiple networks into one easy-to-manage system, delivering consistent, interference-free coverage across large, busy environments. With remote management capabilities, a compact design, and low-maintenance cooling, it’s a future-proof choice for enterprises, public venues, healthcare facilities, and more. Whether for routine operations or critical emergencies, the Zinwave 5000 ensures reliable, high-quality wireless connectivity when it matters most.
