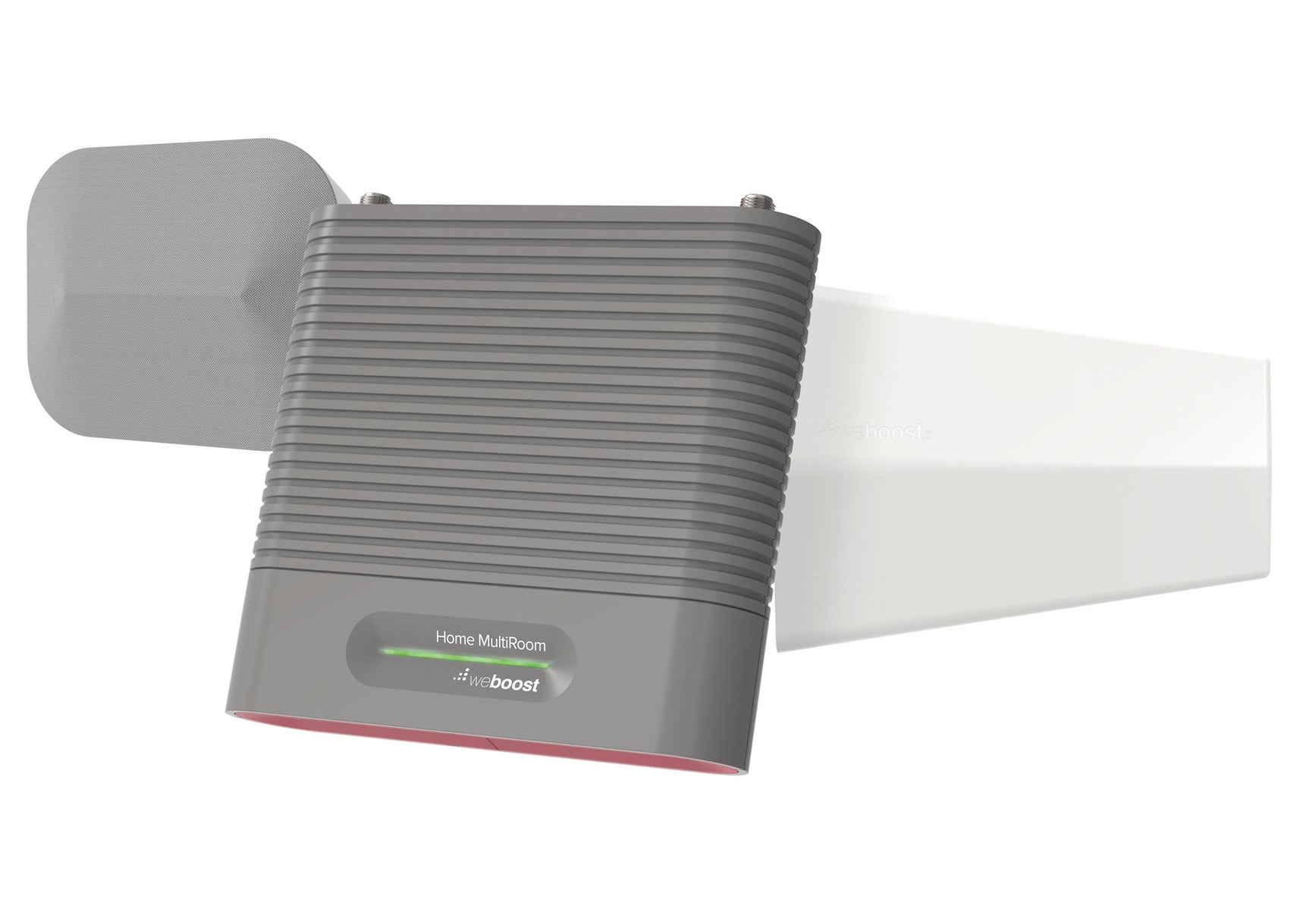

The certified refurbished weBoost Home MultiRoom (470144R) is our best-selling midsize signal booster. It's the ideal solution for homes that require better signal in some of the rooms, but don't need our most powerful home system to cover the entire house.

If you have a strong existing outside signal, then the Home MultiRoom can cover up to 5,000 sq ft inside of your house, but will cover less if the outside signal is weaker or there are internal walls or other obstacles. It will simultaneously boost all of the networks from all of the major carriers in North America, to give you fast data and reliable calling. It's also 5G ready, so it will automatically boost any 5G network deployed on one of the support frequency bands.

Please Note: This refurbished version of the weBoost Home MultiRoom has been certified by the manufacturer to be in like-new condition and comes with all of the components that a brand new Home MultiRoom does. The only major difference between the two is that the refurbished model only has a 1-year equipment warranty, while the new model has a 2-year equipment warranty.

Many variables impact the total coverage area of a signal booster system. The following are estimates only and may not be accurate in any individual situation.

• If you have an existing strong 5-bar outside signal, you may get up to 5,000 sq ft of coverage inside*
• If you have an existing 3 to 4-bar (-90 dB) outside signal, you may get up to 3,500 sq ft of coverage inside*
• If you have an existing 1 to 2-bar (-100 dB) outside signal, you may get up to 1,000 sq ft of coverage inside*

* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.

The weBoost 470144 Home MultiRoom supports the networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

• AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
• Verizon 2G, 3G, 4G LTE & 5G
• Sprint 2G, 3G & 4G LTE
• T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
• US Cellular 2G, 3G & 4G LTE
• All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

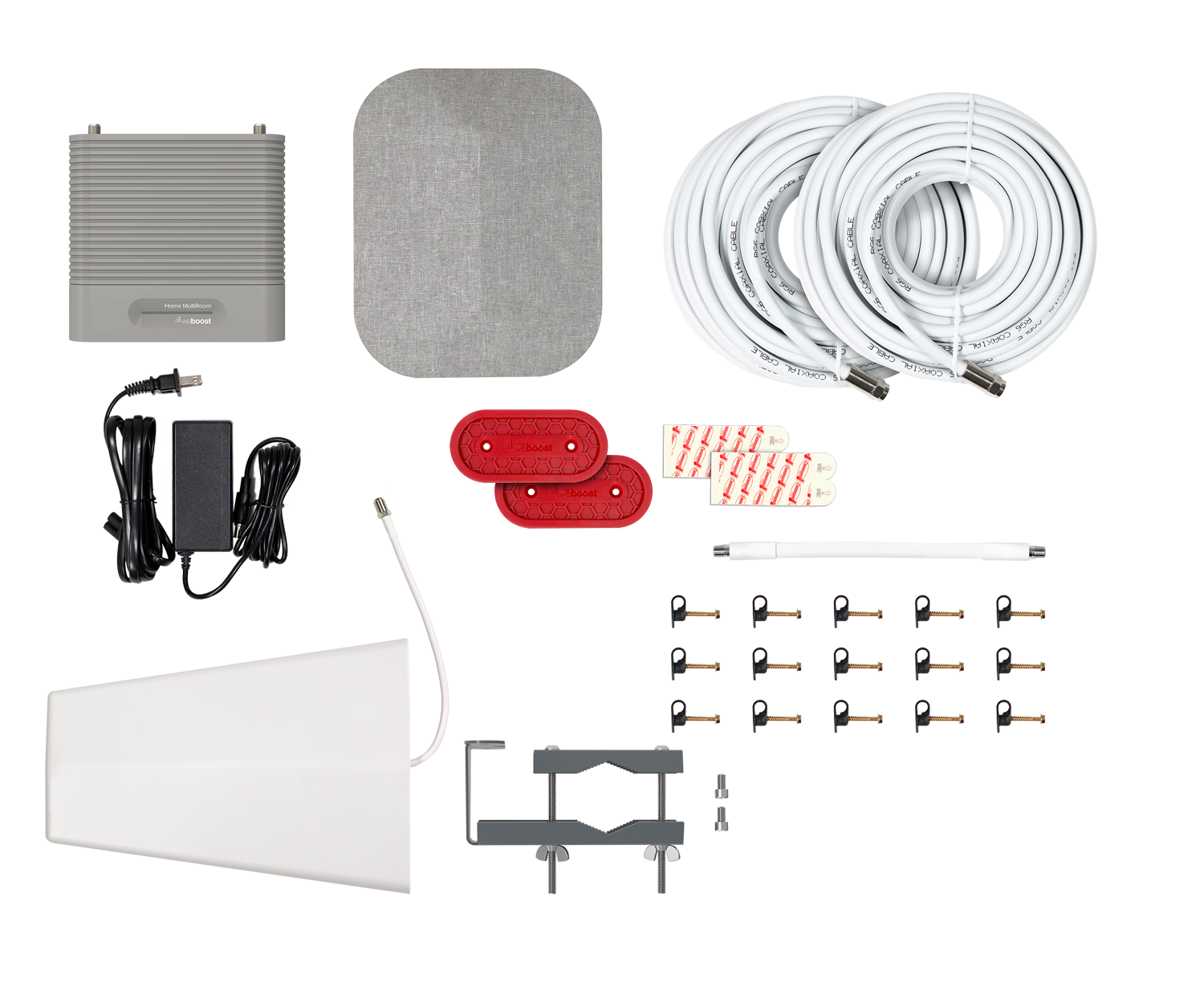

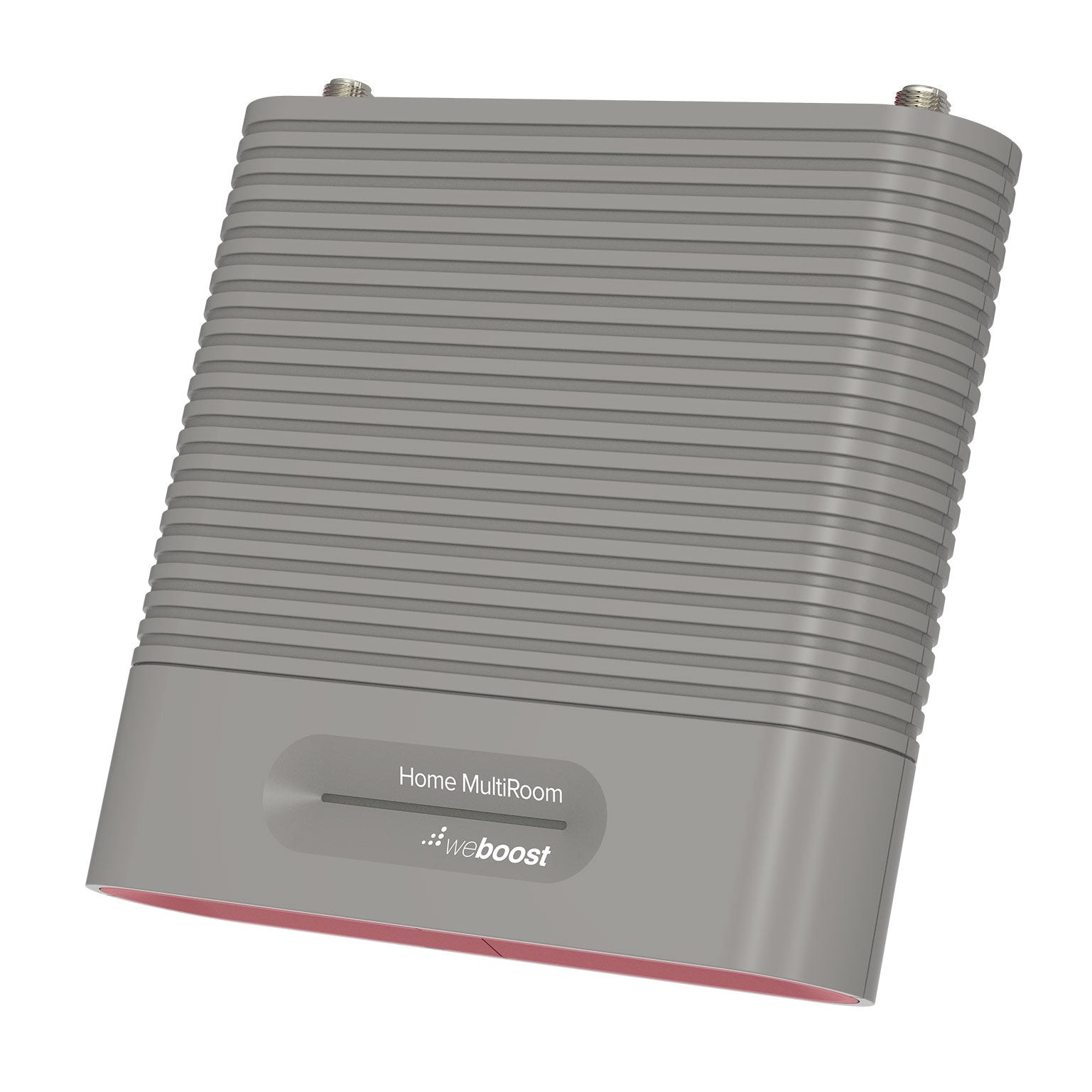

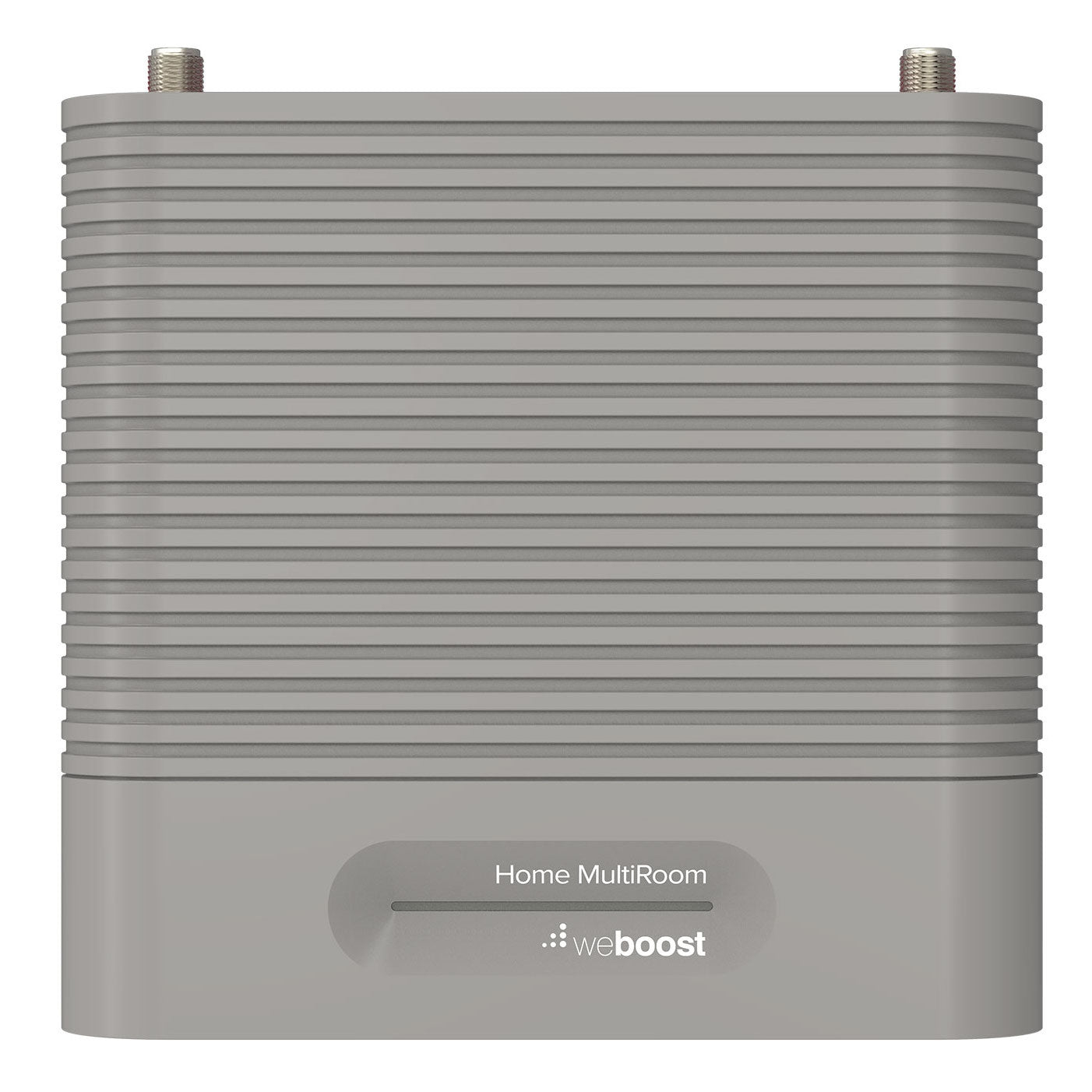

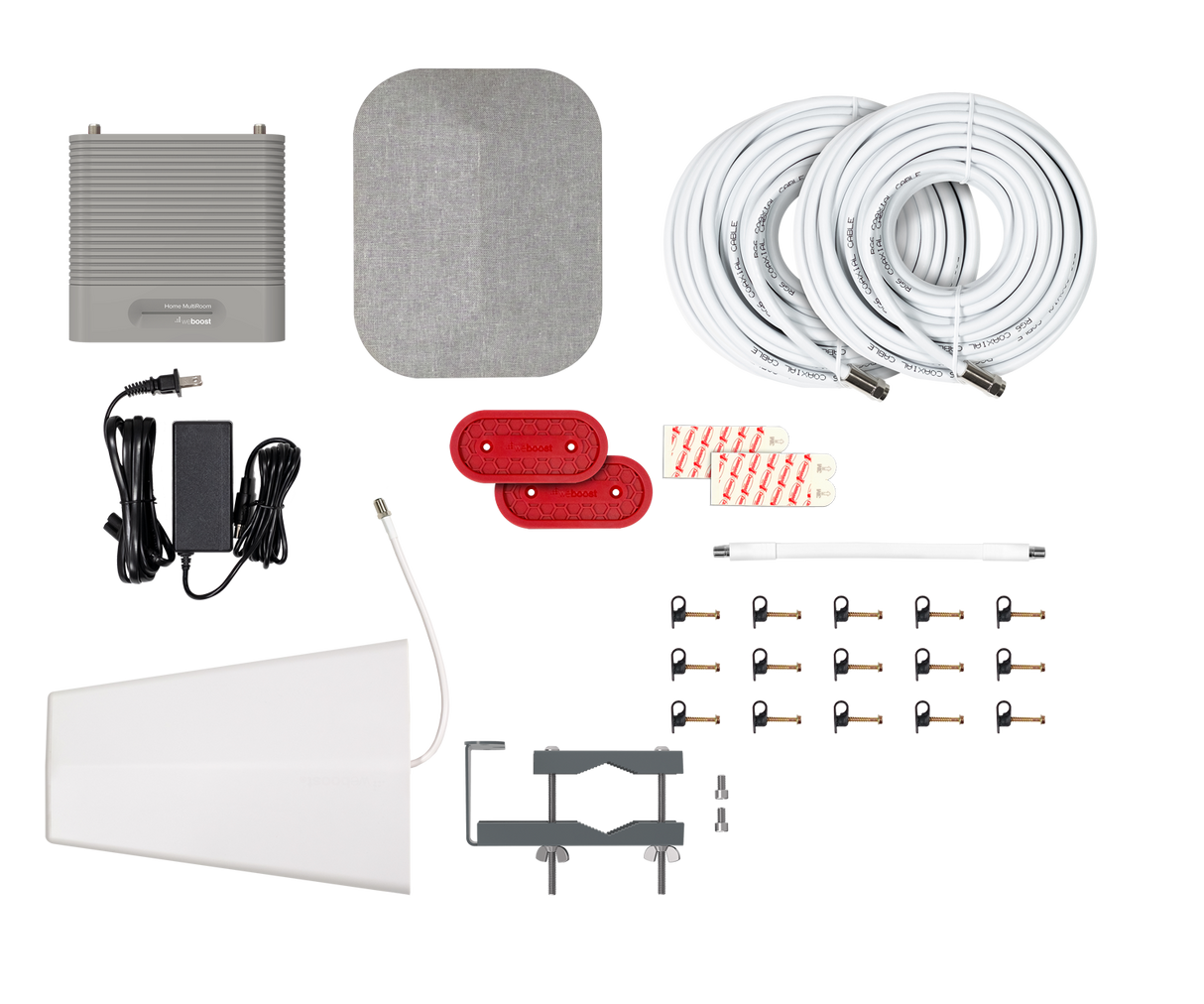

• weBoost 5-Band Home MultiRoom 65 dB Amplifier

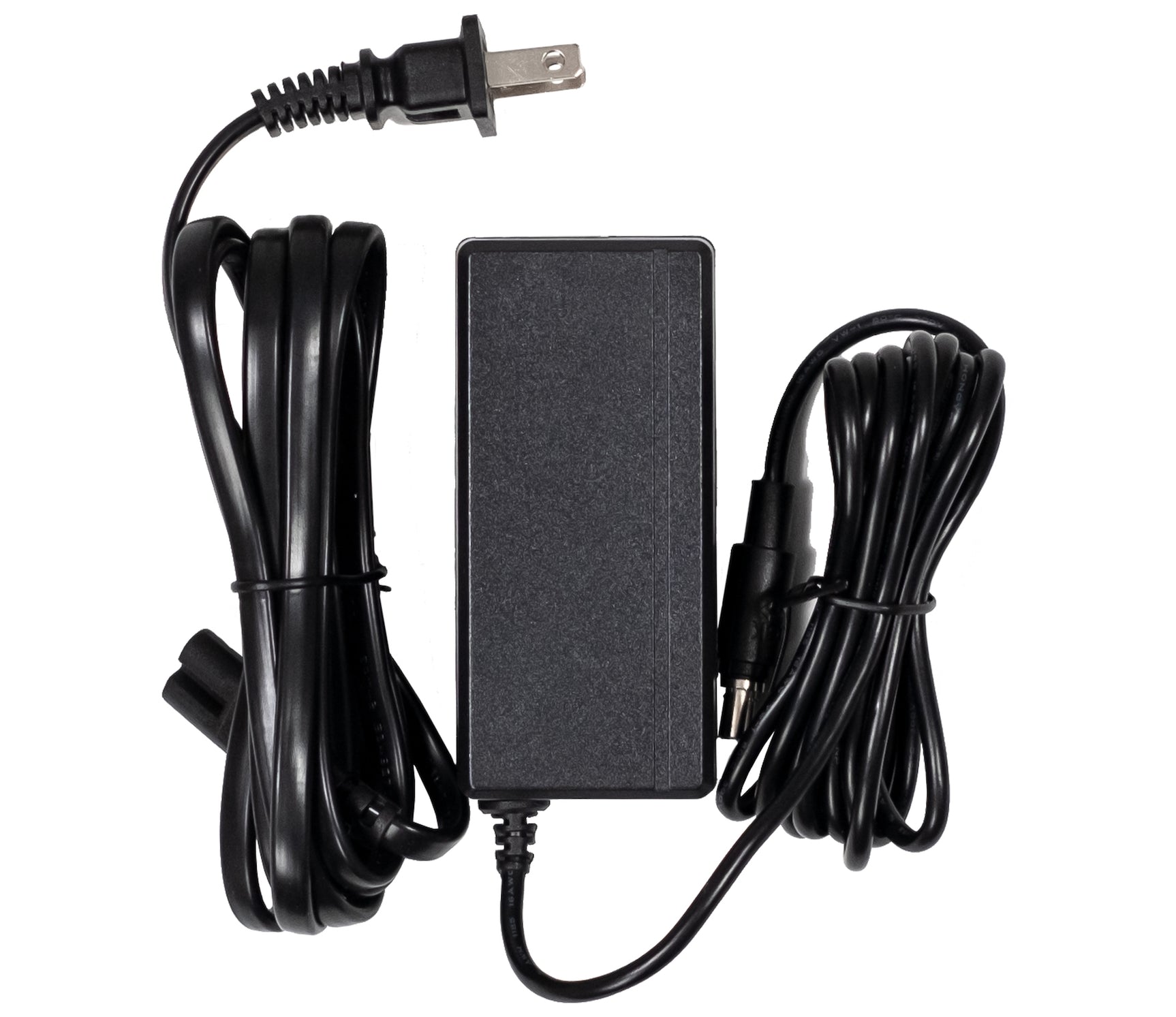

• AC Power Supply

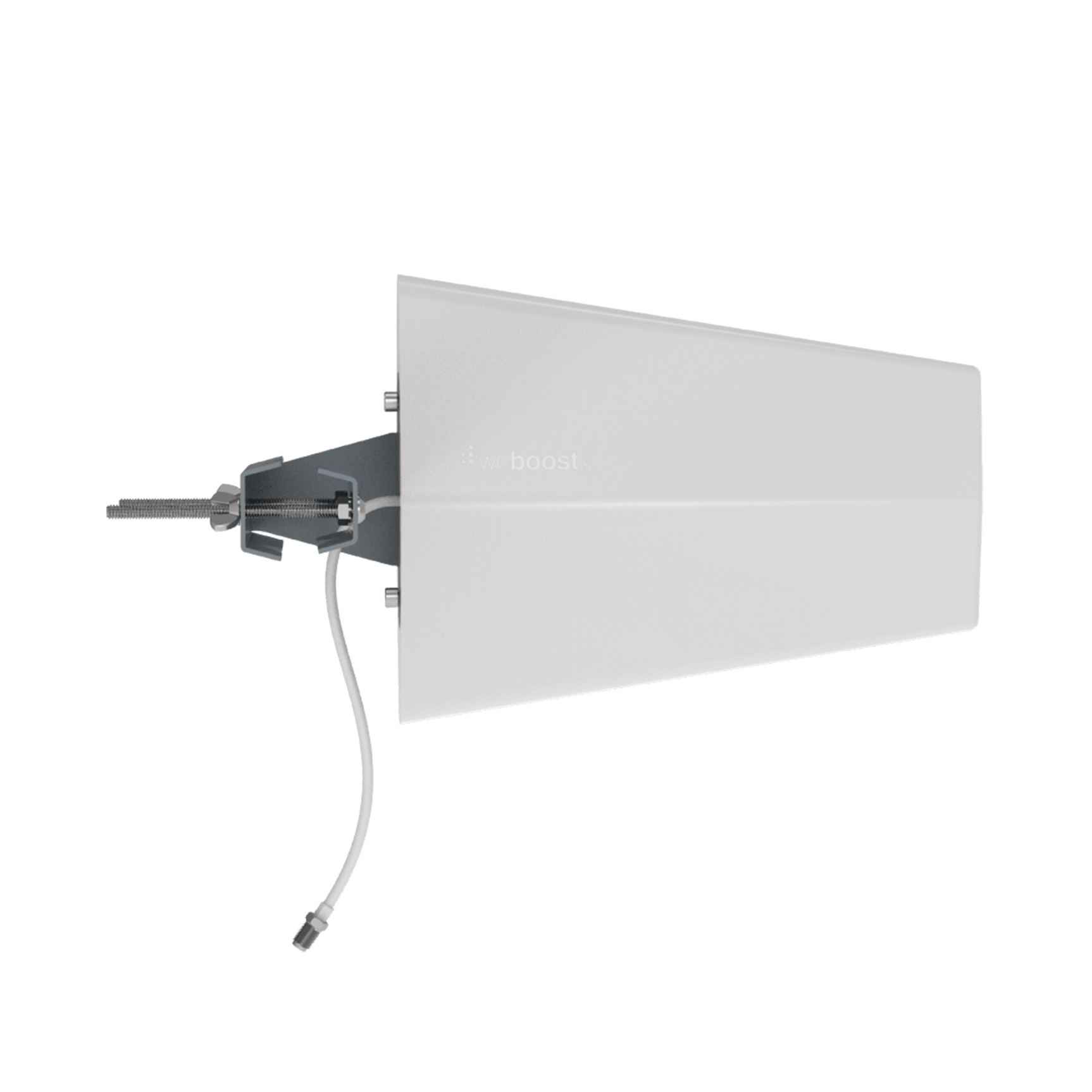

• Wide-Band Directional Antenna with F-Female Connector

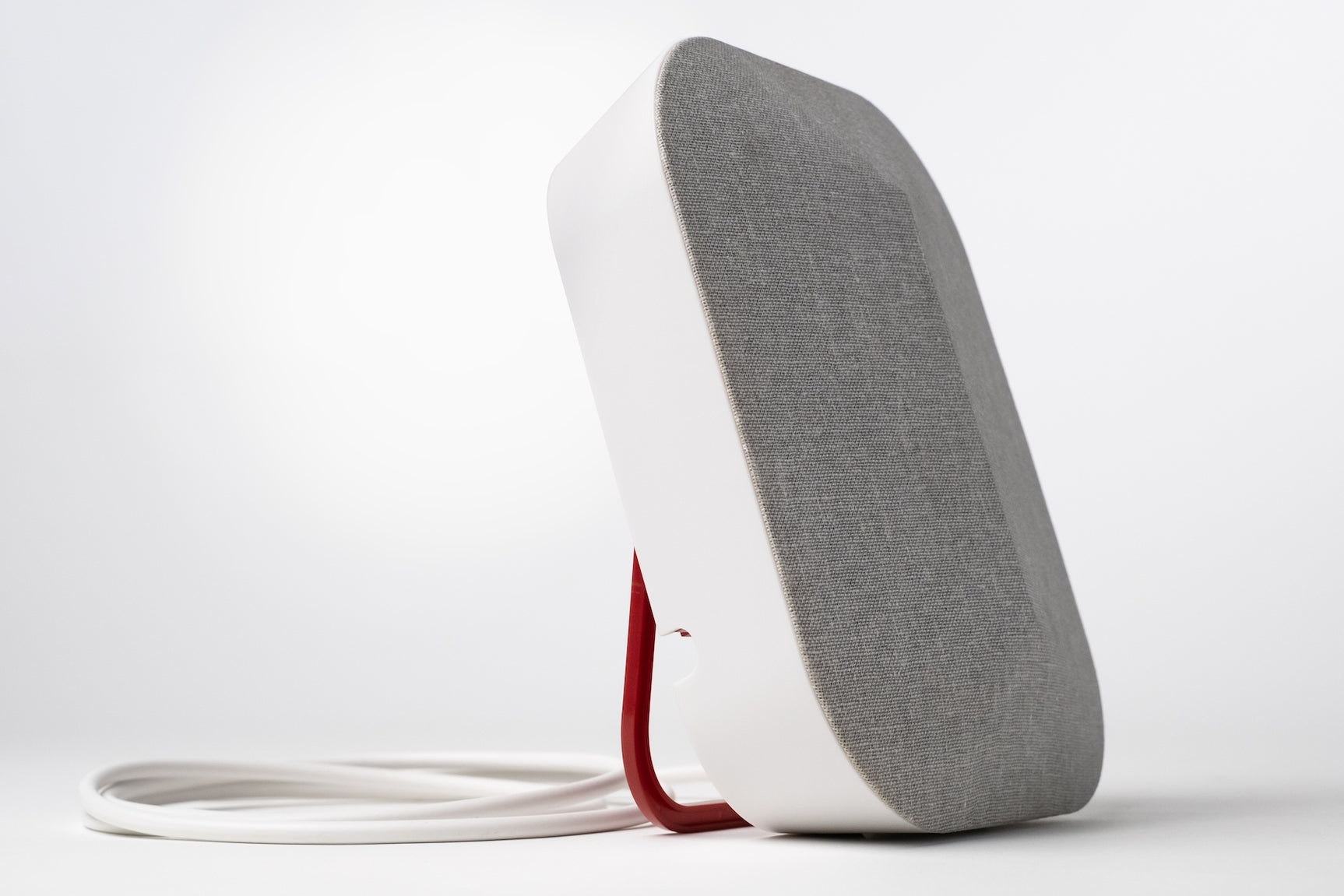

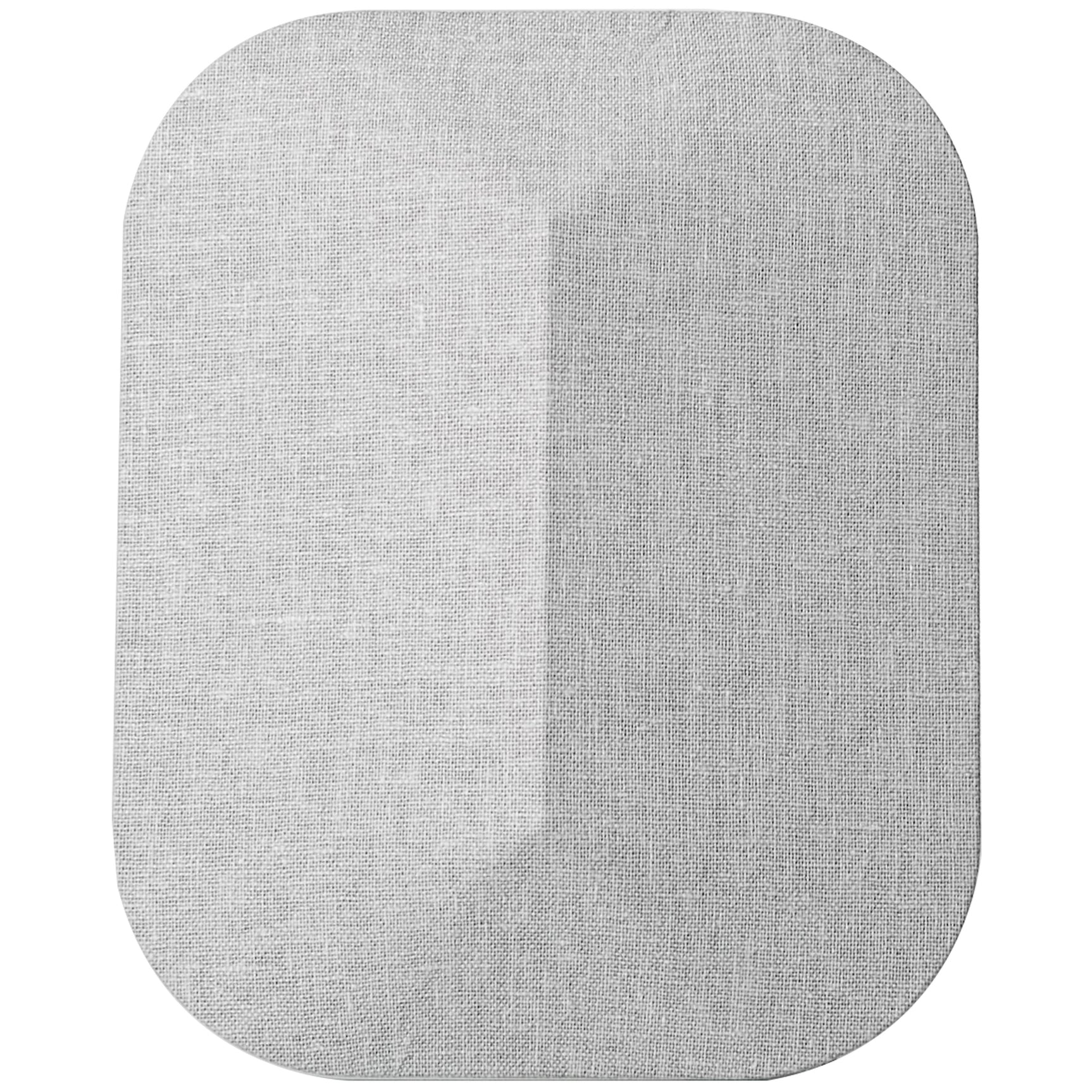

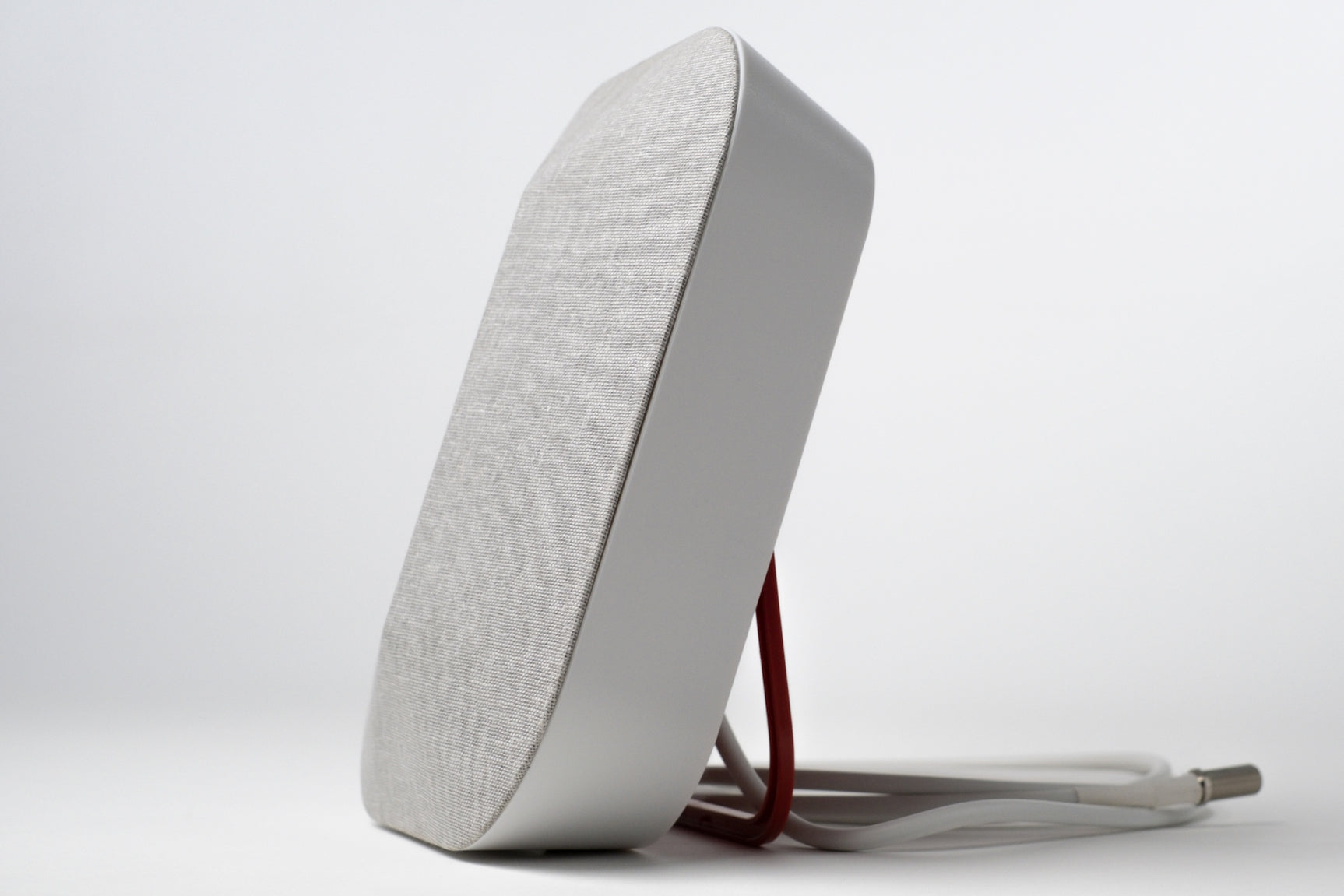

• Wide-Band Panel Antenna with F-Female Connector
• 30' White RG6 Low Loss Coax Cable

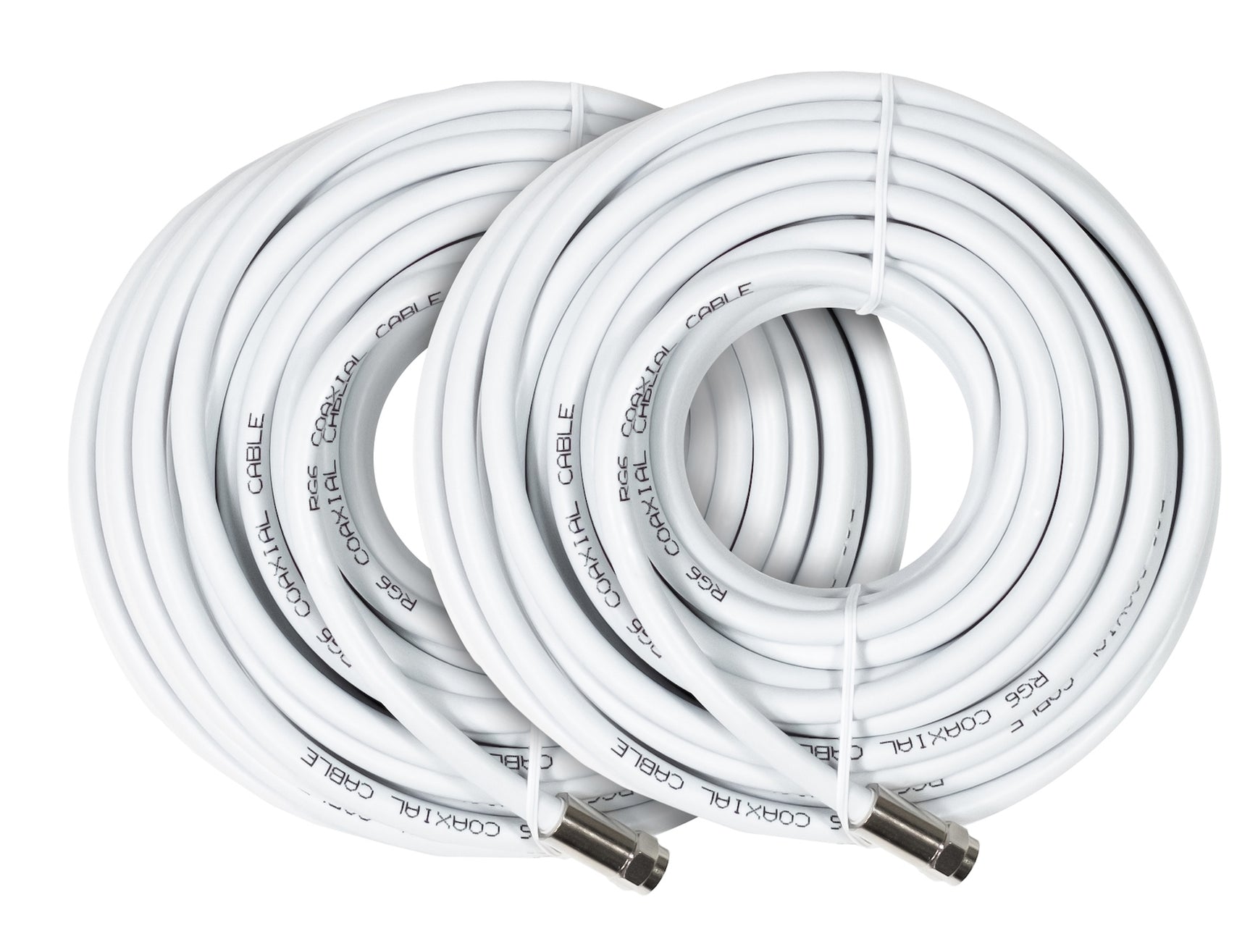

• 2 x 15' White Low Loss Cables with Barrel Connector

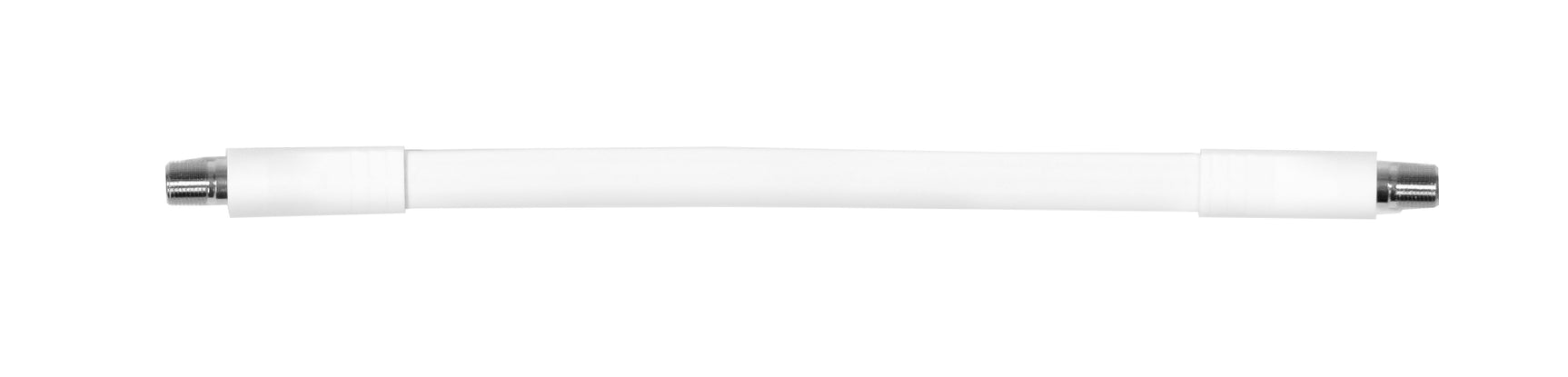

• 8" Flat Coax Cable

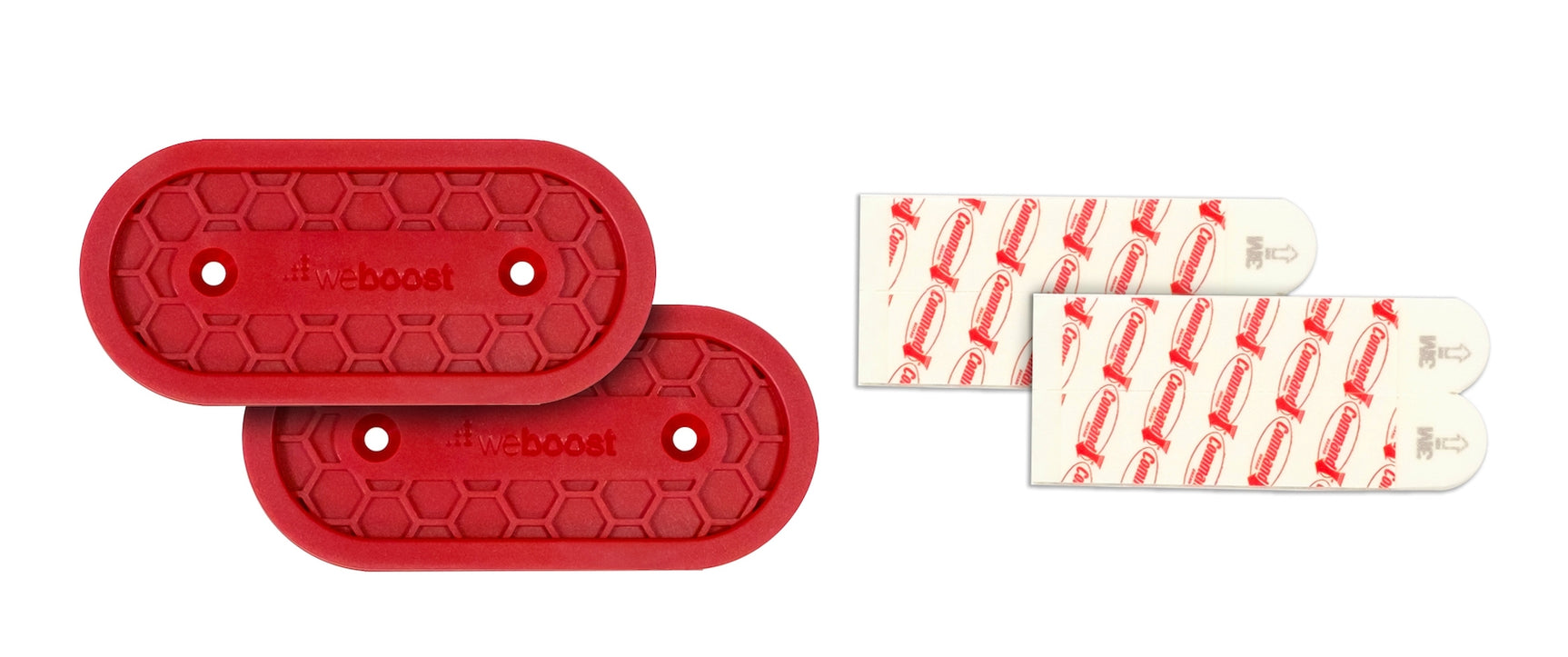

• Antenna Hardware Mounting Kit

Accessories

We recommend a lightning protector kit for all installations in areas that have lightning or thunderstorms. The lightning protector has a gas discharge element that severs the connection to the amplifier if the outside antenna is struck by lightning.

The included directional outside antenna comes with mounting hardware for a pole. If you don't have an existing pole to mount the antenna to, you should also include 901117 Pole Mounting Assembly.

The weBoost Home MultiRoom has been redesigned to be even easier to install than the previous version, so anyone who's a bit handy should be able to do it. If you're not comfortable climbing up on your roof to mount an antenna, then it's best to get some professional assistance.

We also always recommend doing a soft install where you don't permanently mount anything or drill any holes until you know the system will work for you and you've identified the best locations for the antennas.

To install, just follow these 4 steps:

1. To start, you'll need to find a place on the roof to mount the outside antenna. With a directional outside antenna, it's best to determine which direction it will need to be pointed before permanently mounting the antenna (we'll cover how to do this at the end). Once the antenna is mounted, connect the 30 ft. RG6 coax cable to the antenna and run it into the building. You may be able to enter through a vent or a soffit, or you may have to drill a hole, otherwise you can use the flat cable to run under a closed window.

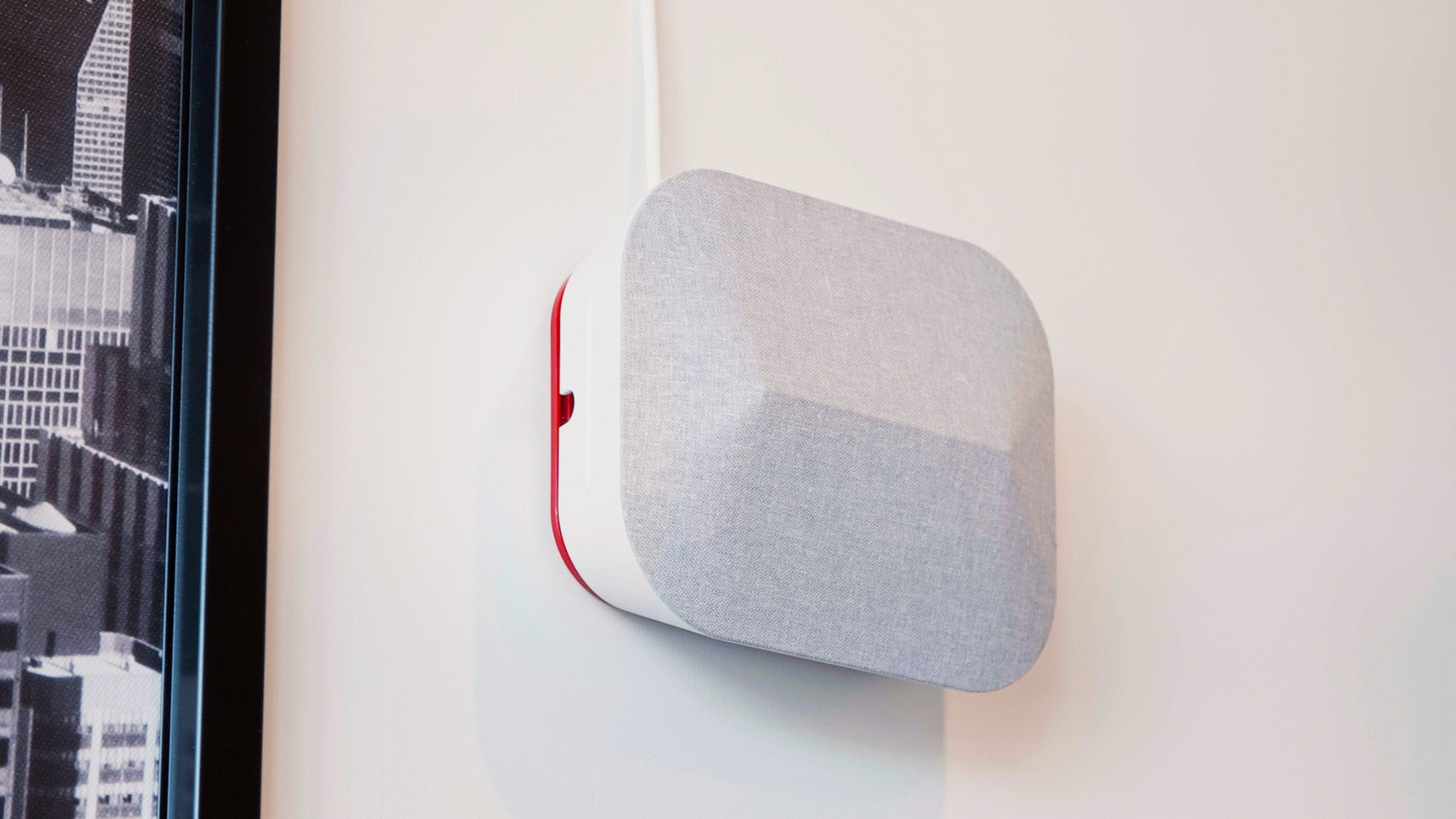

2. With the cable inside, connect it to a lighting protector (if you purchased one), and then to the amplifier. To the inside antenna port on amplifier, connect one of the 15 ft. RG6 cables (or combine both with the barrel connector) and then connect the inside antenna. If you have an attic, the easiest installation method is typically to have the amplifier and inside antenna in the attic with the panel antenna face down on the floor in the middle of the house. If you don't have an attic, you can mount the panel antenna on the ceiling in the middle of the house or on a wall.
3. Once all of the components are connected, plug in the amplifier and see if you get any error lights. For any errors, consult the manual or contact us for help.
4. Aiming the Antenna: For best results, you'll need to aim the directional outside antenna. Start with the antenna high on the roof pointed in one direction. Turn on the system and have an inside helper inside stand about 3 ft. from the inside antenna and take a signal reading with their phone in field test mode. Rotate the directional antenna 45 degrees and then pause for 30 to 60 seconds. After the pause, the person inside should take another signal reading, and then you can repeat the process. Each time your partner checks the signal strength, also check to make sure there aren't any warning lights on the amplifier. After you've gone all the way around, mount the antenna facing in the direction with the strongest signal. If possible, also mount the antenna on that side of the home or office so that it's pointing away from the building and not over the building.

The included manual is very helpful and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact us for help.
