How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Product Overview
Product Overview

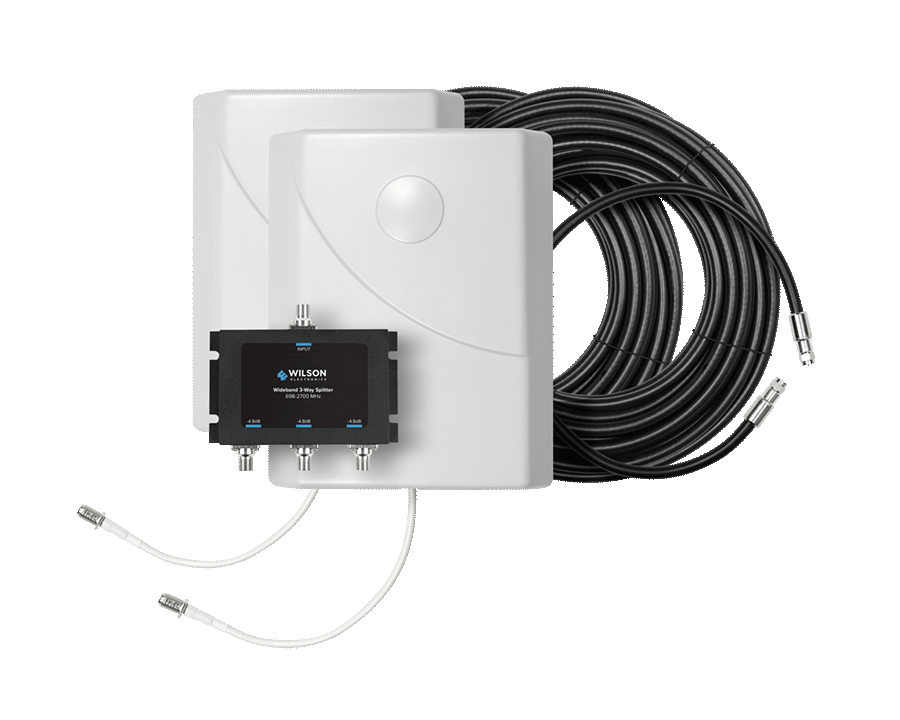

The weBoost Dual Antenna Expansion Kit 75 Ohm provides a comprehensive solution for enhancing your signal booster system's coverage by allowing the addition of two more antennas, enabling a setup with a total of three antennas. This kit is specifically engineered to tackle coverage issues in environments with architectural challenges that obstruct effective signal distribution.
Integrating two additional antennas into your 75 ohm signal booster system is especially advantageous in buildings with multiple rooms separated by thick walls, or in multi-story structures where signal penetration between floors is poor. The presence of three antennas facilitates a more evenly distributed signal, ensuring that each area of your home or office receives a strong and consistent connection.
This expansion kit comes with everything necessary for a seamless installation, making it simpler to extend the reach of your signal booster system.
- One Wilson Three-Way Wide-Band Splitter
- One 2ft length of RG-11 cable
- Two 50 ft cable runs of RG-11
- Two wall mount panel antennas
