Wilson 850034 Two-Way Wide-Band Splitter with F-Female Connectors
90-Day Returns • Free Shipping $100+ • 2-Year Warranty
How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Product Overview
Product Overview

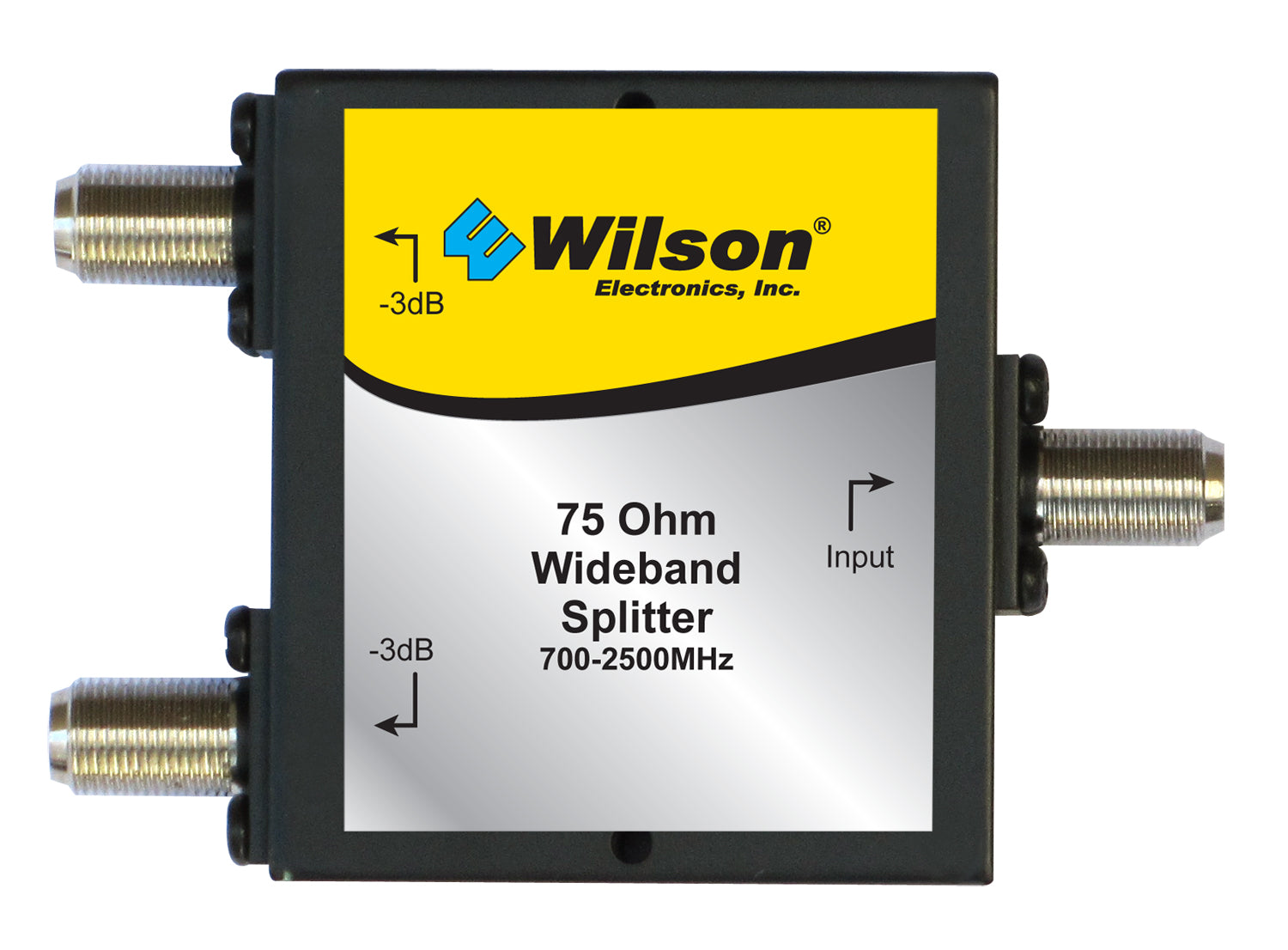

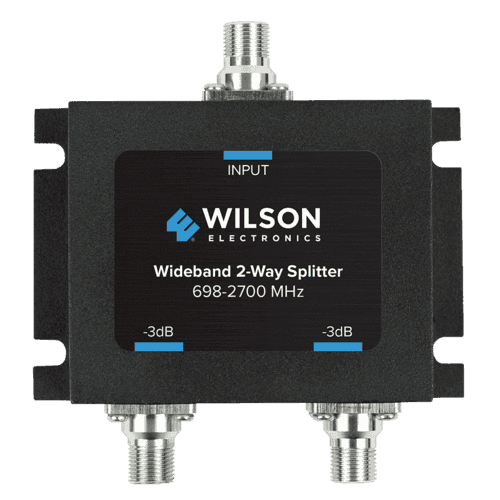

Wilson 850034 Two-Way Wide-Band Splitter with F-Female Connectors
The Wilson 850034 Two-Way Wide-Band Splitter is a versatile device designed to evenly distribute a single input signal into two outputs. It features F-Female connectors, making it compatible with a wide range of coaxial cables. This splitter is specifically engineered for cellular mobile communication systems, supporting a broad frequency range from 698 to 2700 MHz.
Key Features:
- Broad Frequency Range: Operates within 698-2700 MHz, accommodating most cellular communication bands.
- Optimized for Cellular Communication: Ideal for distributing signals in cellular mobile communication applications.
- Low Insertion Loss and VSWR: Features low insertion loss of 0.4 dB and low VSWR (≤2.0:1), ensuring minimal signal degradation.
- High Isolation: Provides high isolation (≥20 dB) with low ripple, preventing signal interference between outputs.
- Durable Design: Built with a microstrip structure for durability and reliable performance.
- Power Capacity: Can handle up to 50 watts of power, suitable for various signal amplification needs.
Specifications:
- Splitter Loss: 3.0 dB, allowing for effective signal distribution with minimal loss.
- Impedance: 75 Ohm, matching standard coaxial cable impedance for seamless integration.
- Connectors: Equipped with F-Female connectors for easy installation.
- Dimensions: Measures 3.6 x 3.5 x 0.8 inches (LxWxD), offering a compact form factor.
- Weight: Weighs 7.04 ounces, making it lightweight and easy to handle.
- Operating Temperature: Rated for use in temperatures ranging from -40 to 140°F, ensuring reliability in various environmental conditions.
This splitter is an essential tool for anyone looking to enhance their cellular signal distribution system, offering high performance, reliability, and ease of use. With its durable construction and efficient signal handling, the Wilson 850034 Two-Way Wide-Band Splitter ensures that your communication systems operate smoothly and effectively.
