How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Wilson Mini In-Vehicle Panel Antenna | 310004
Product Overview
Product Overview

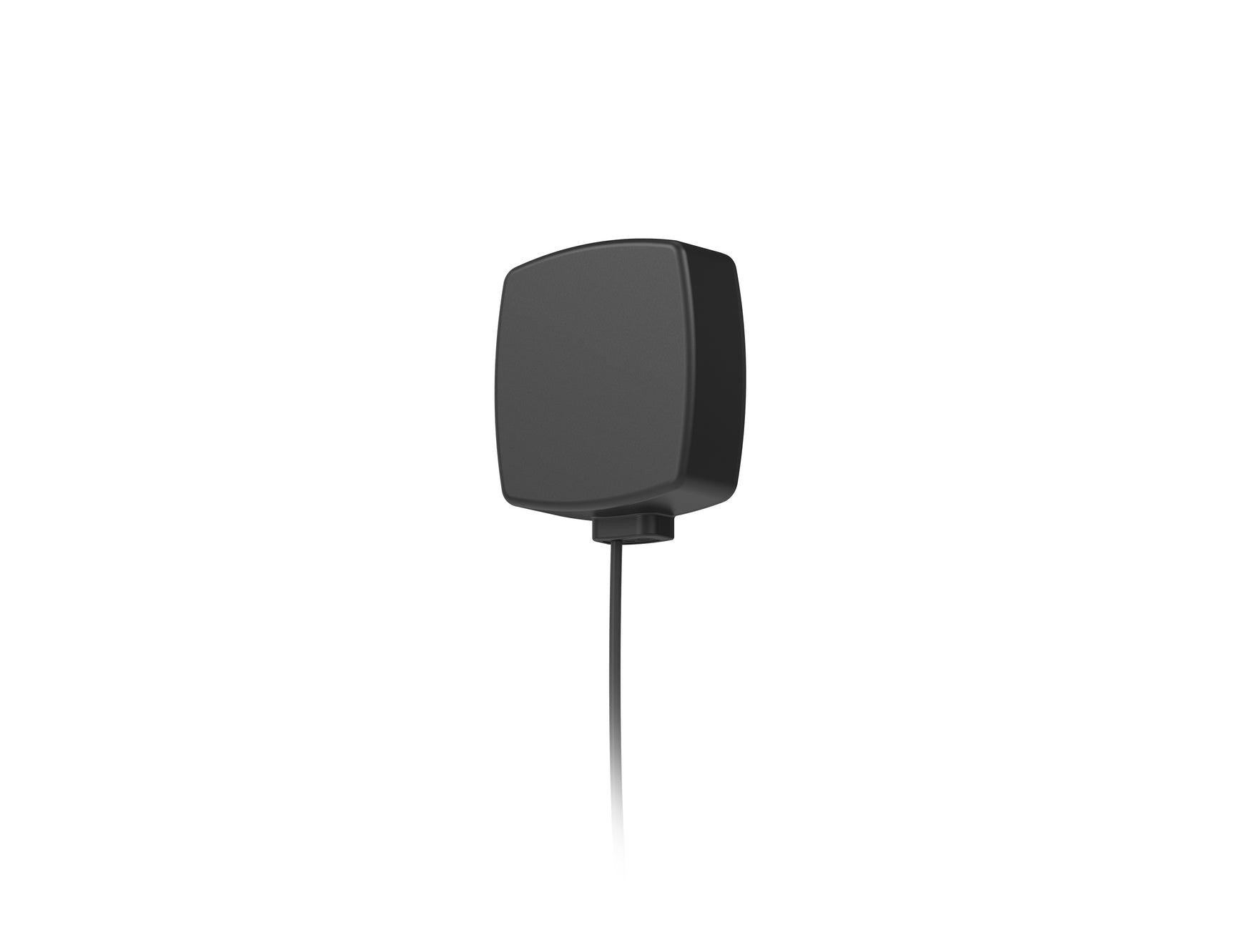

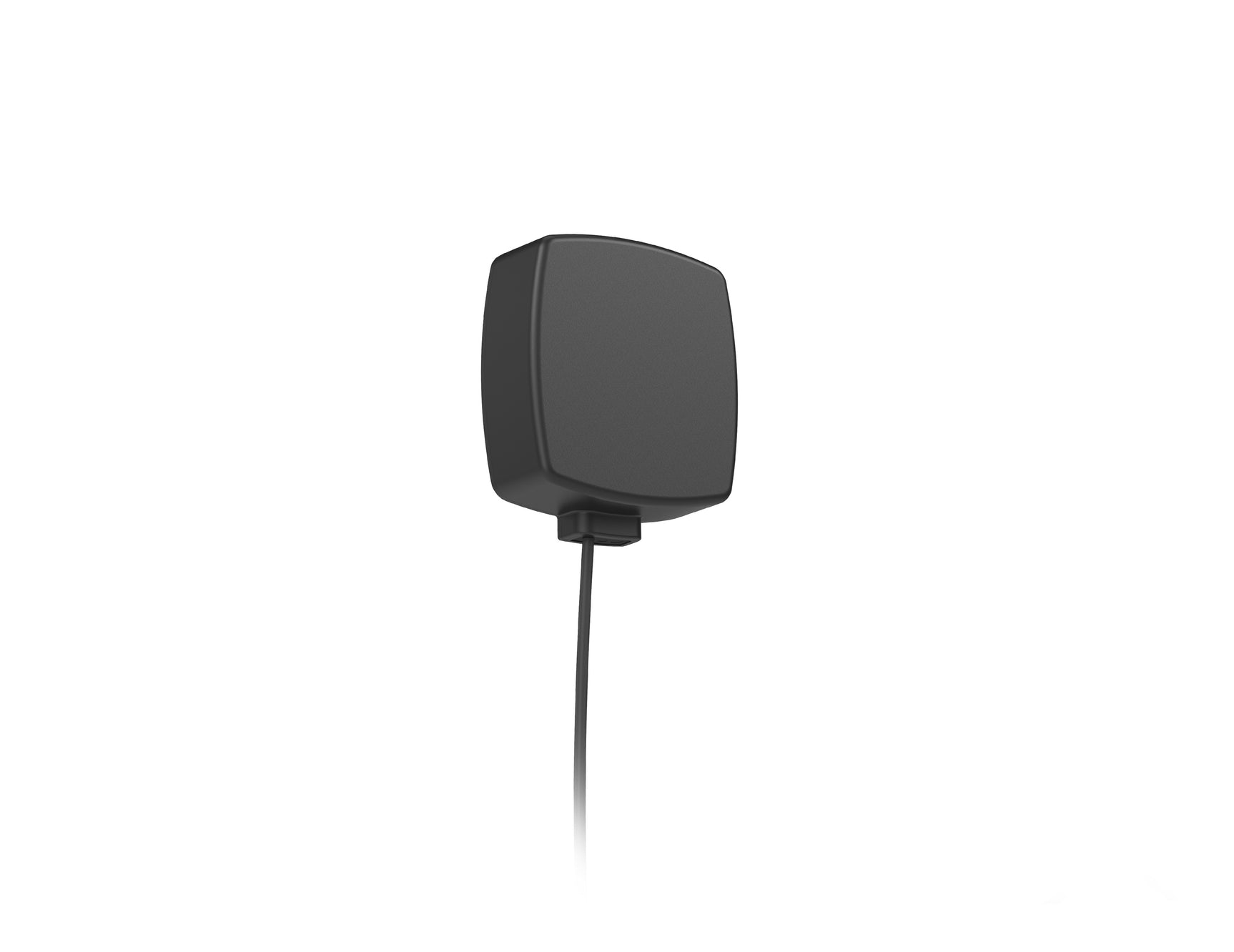

The Wilson Mini In-Vehicle Panel Antenna is a compact and versatile solution designed to improve cellular signal reception for vehicles. Supporting a wide range of frequencies, including 5G, 4G, 3G, and 2G, this low-profile antenna is perfect for boosting connectivity on the go. Its durable and weather-resistant design, combined with a simple Velcro mount, ensures reliable performance in various driving conditions, making it an ideal choice for maintaining strong and stable cellular signals.
Key Features
- Supports 5G, 4G, 3G, and 2G networks across 617-5925 MHz frequency bands.
- High-gain performance for enhanced signal strength and connectivity.
- Ground plane-independent design for versatile placement.
- Durable construction with IP67/IP69 dust and water resistance ratings.

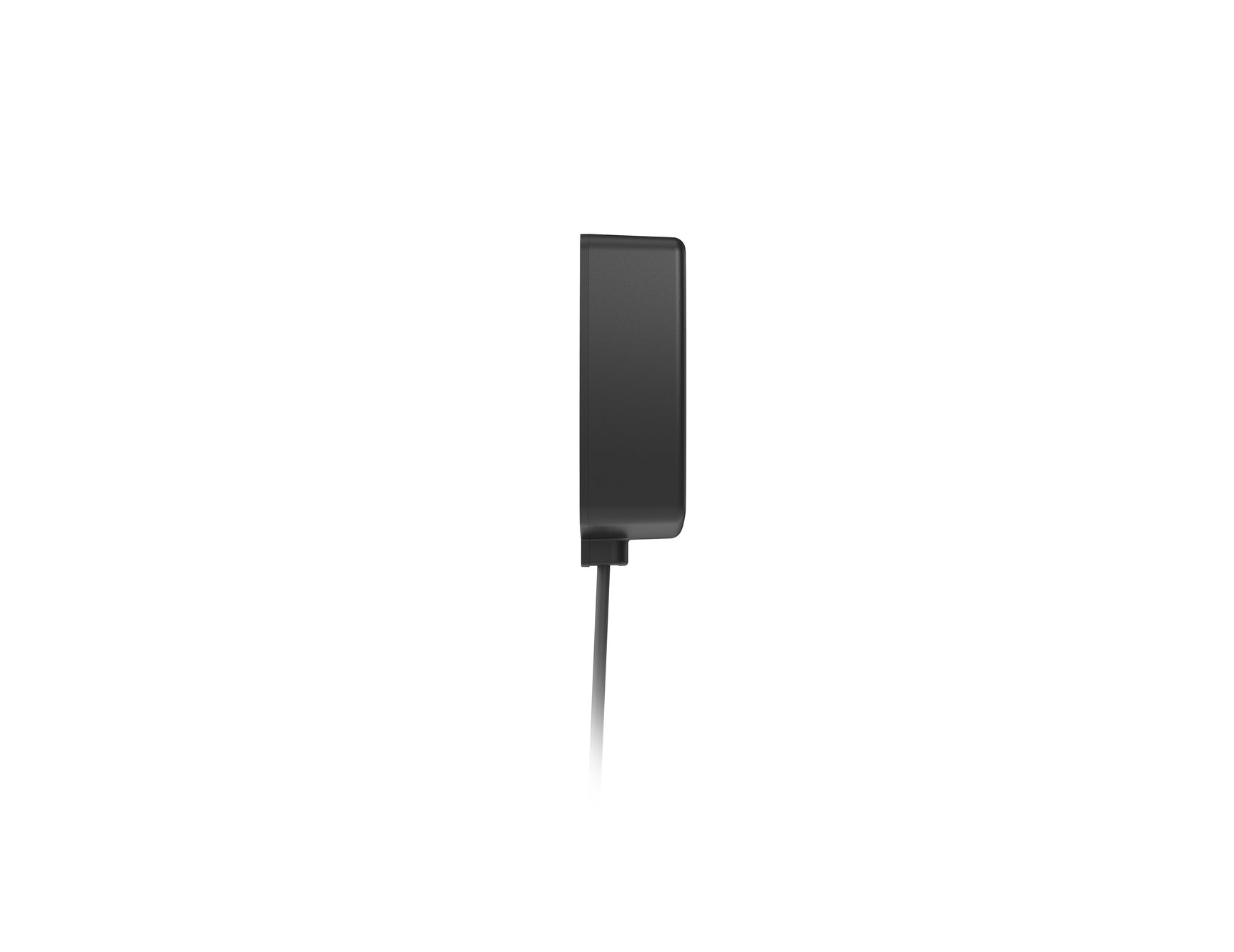

- Compact and discreet, measuring 3.5" x 3" x 1" (89 mm x 76 mm x 30 mm).

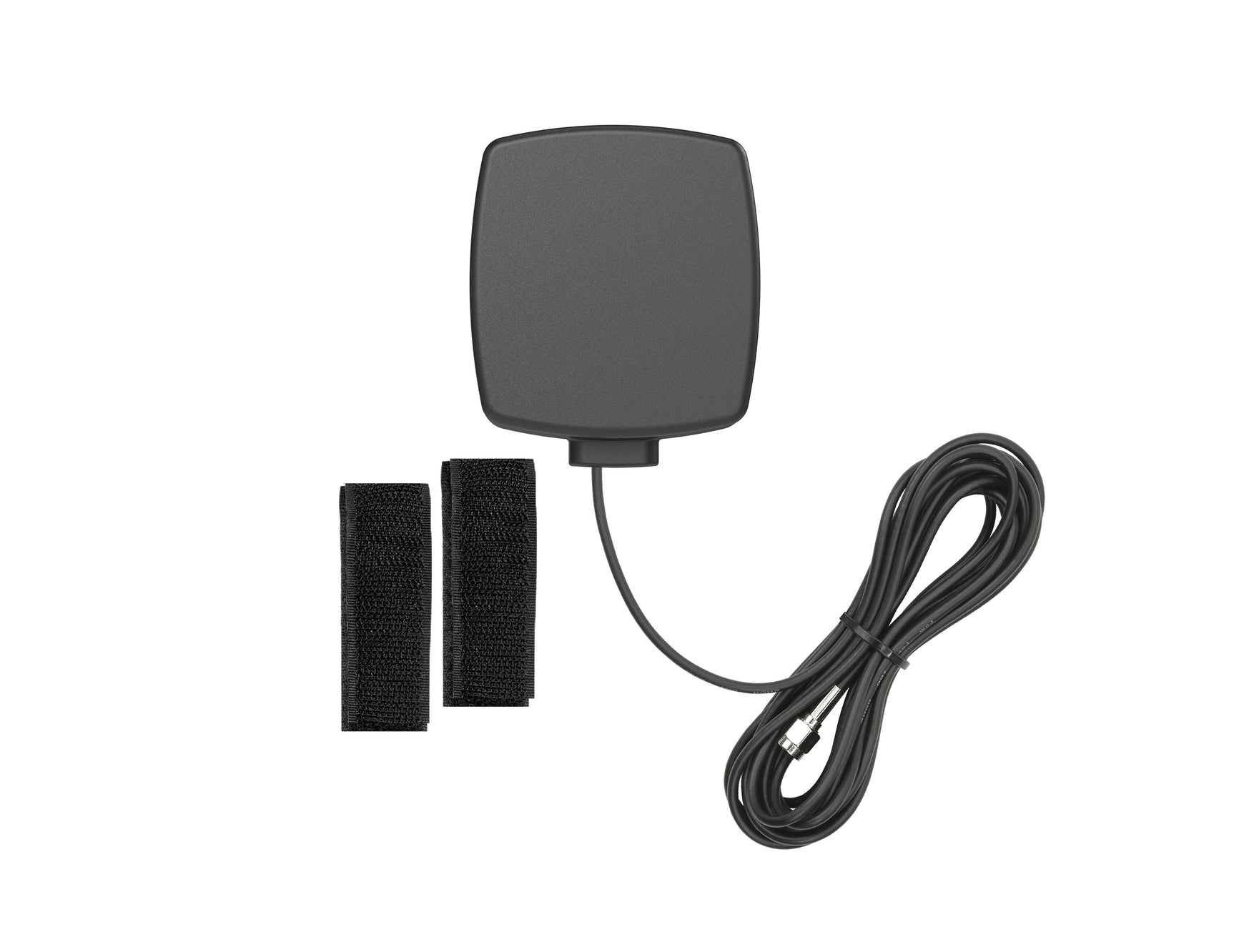

- Includes a 10-foot DACAR-302 cable with SMA male connector for easy installation.
- Omni-directional radiation pattern for 360° signal coverage.
- Wide temperature tolerance, operating from -40°C to +85°C (-40°F to +185°F).
Specifications
- Frequency Bands: 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz.
- Return Loss: ~-7.0 dB to ~-11.2 dB, depending on frequency.
- VSWR: ~2.1:1 to ~3.1:1 for efficient signal transmission.
- Efficiency: ~25.1% to ~56.3%, depending on frequency.
- Peak Gain: ~2.1 dBi to ~6.3 dBi for improved performance.
- Impedance: 50 Ohms for seamless compatibility with signal boosters.
- Cable Length: 10 feet (3 meters).
- Radome Material: ASA UV-stable for durability and longevity.
- Max Power: 35 Watts.
Who It's For
The Wilson Mini In-Vehicle Panel Antenna is perfect for drivers who want consistent cellular connectivity during their travels. Whether you are on the road frequently for business or simply need a reliable signal for personal use, this antenna provides the performance and durability needed to stay connected in any situation.
