WilsonPro 1100 Enterprise Signal Booster | 460147 [Discontinued]

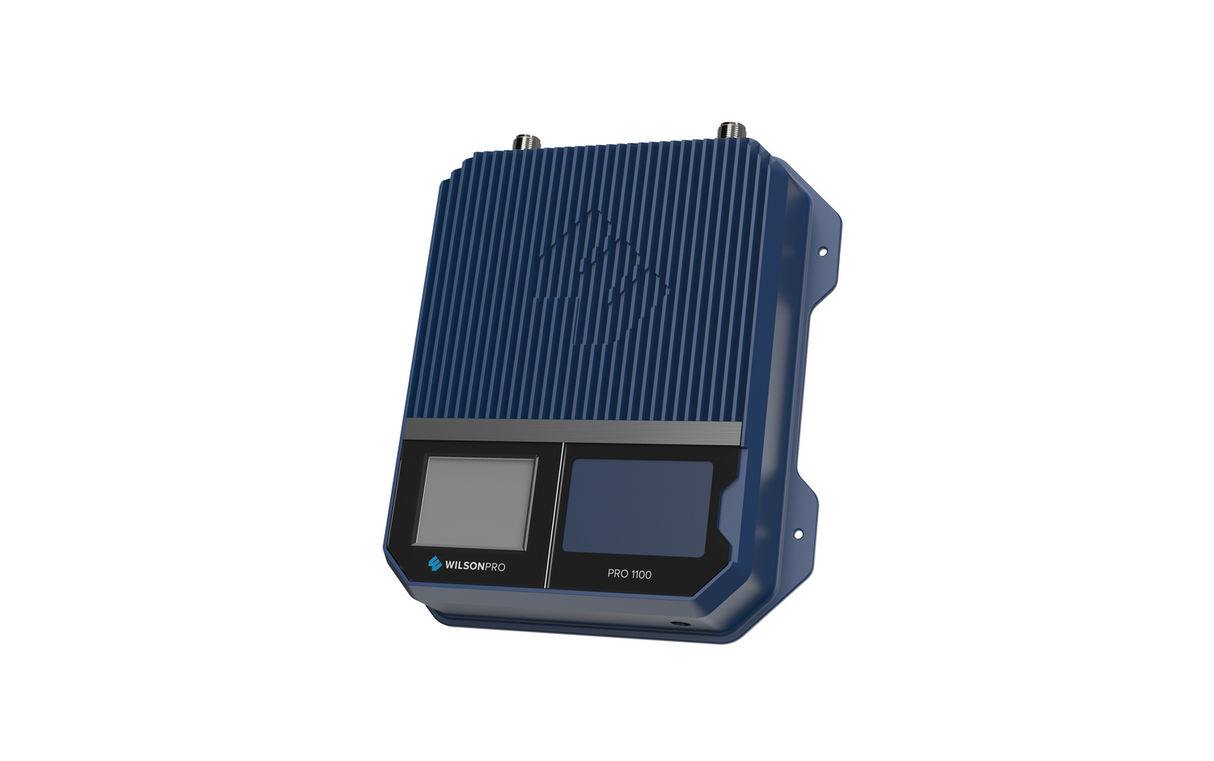

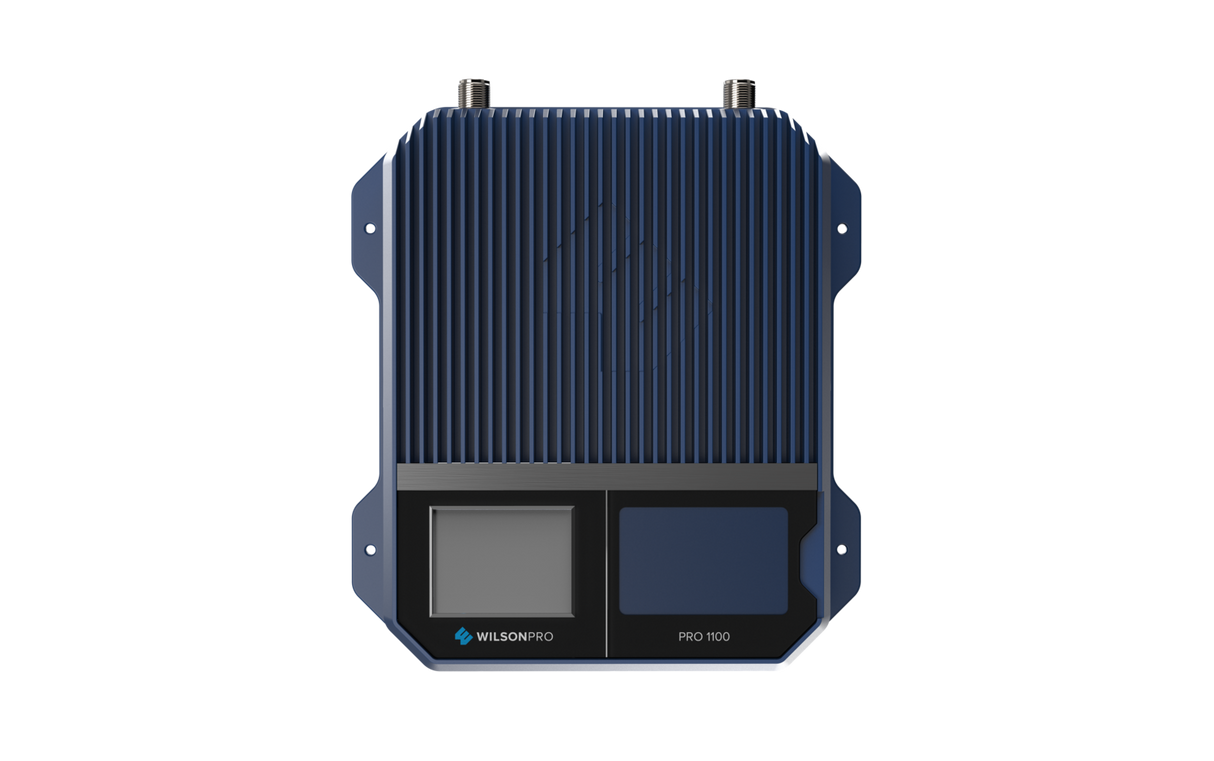

The WilsonPro 1100 Enterprise Signal Booster (460147) is an enterprise level solution from the Wilson Professional line of boosters. It is designed to simultaneously boost the 2G, 3G and 4G LTE signals from the major carriers in North America, and has the most powerful uplink and downlink allowed by the FCC. This means that the WilsonPro 1100 is able to provide the maximum amount of inside coverage based on the outside signal strength, especially if the outside signal is strong, while also ensuring the strongest possible signal back to the external cell towers.

The WilsonPro 1100 includes Wilson's patented Extended Dynamic Range (XDR) technology that allows the amplifier to adjust itself to any strength of outside cell signal, so it can handle any type of outside signal environment. It is also the first amplifier from Wilson Electronics to include a color touch screen for easy troubleshooting and amplifier tuning.

Finally, the WilsonPro 1100 comes in both 50 ohm (SKU 460147) and 75 ohm (SKU 461147) versions, so please contact us if you are interested in either version.

The WilsonPro 1100 features:

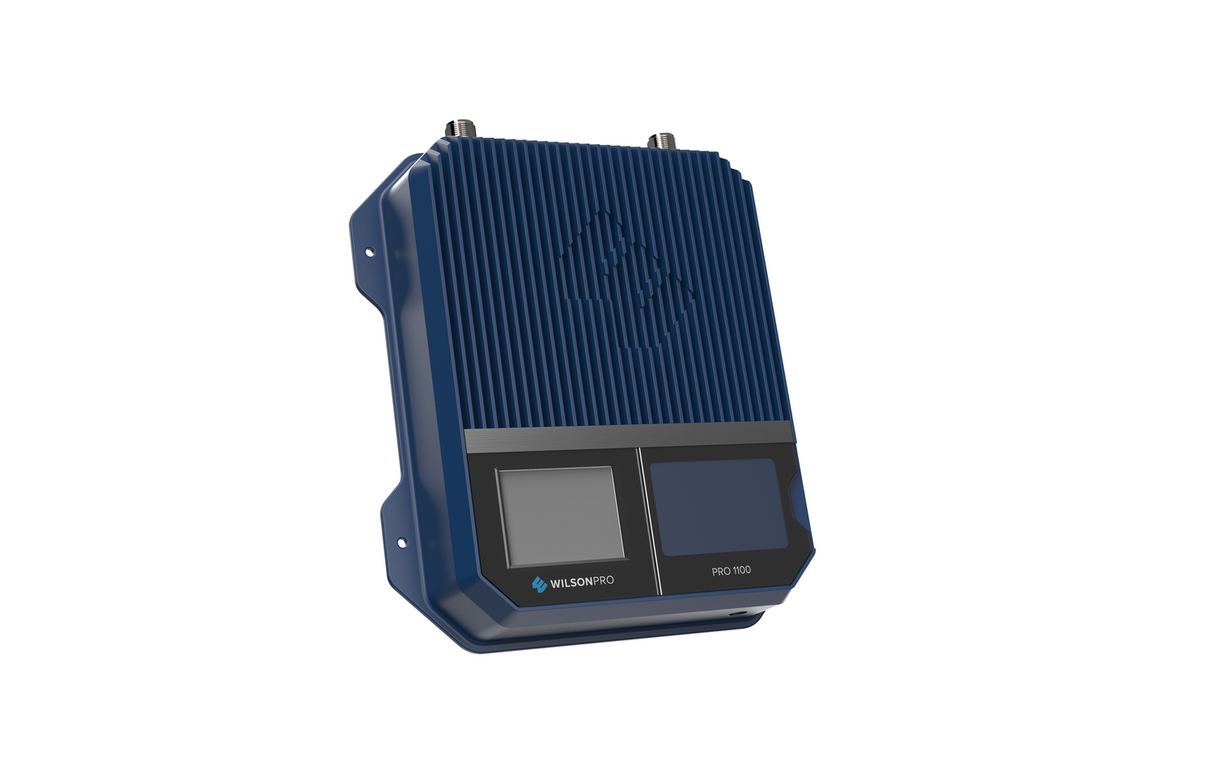

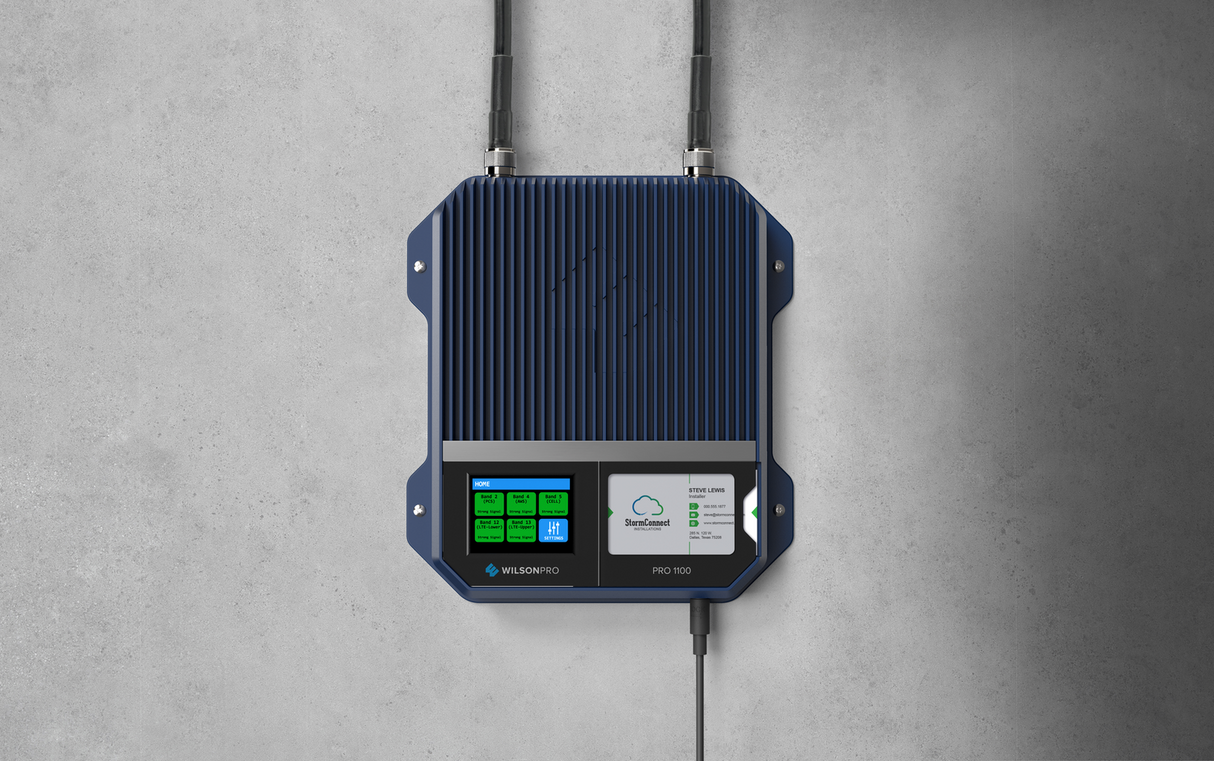

• An enterprise grade, wall mount amplifier with a power supply integrated into the amplifier.
• The Extended Dynamic Range (XDR) Technology that allows the amplifier to scale the boosting power on each frequency band from the maximum of 72 decibels, all the way down to 0 decibels, in order to prevent a strong outside signal from overloading and shutting down the booster. This new technology eliminates the possibility of overload from nearby towers.
• The FCC maximum uplink and downlink powers for the largest possible inside coverage area while also ensuring the strongest signal back to the outside cell towers.

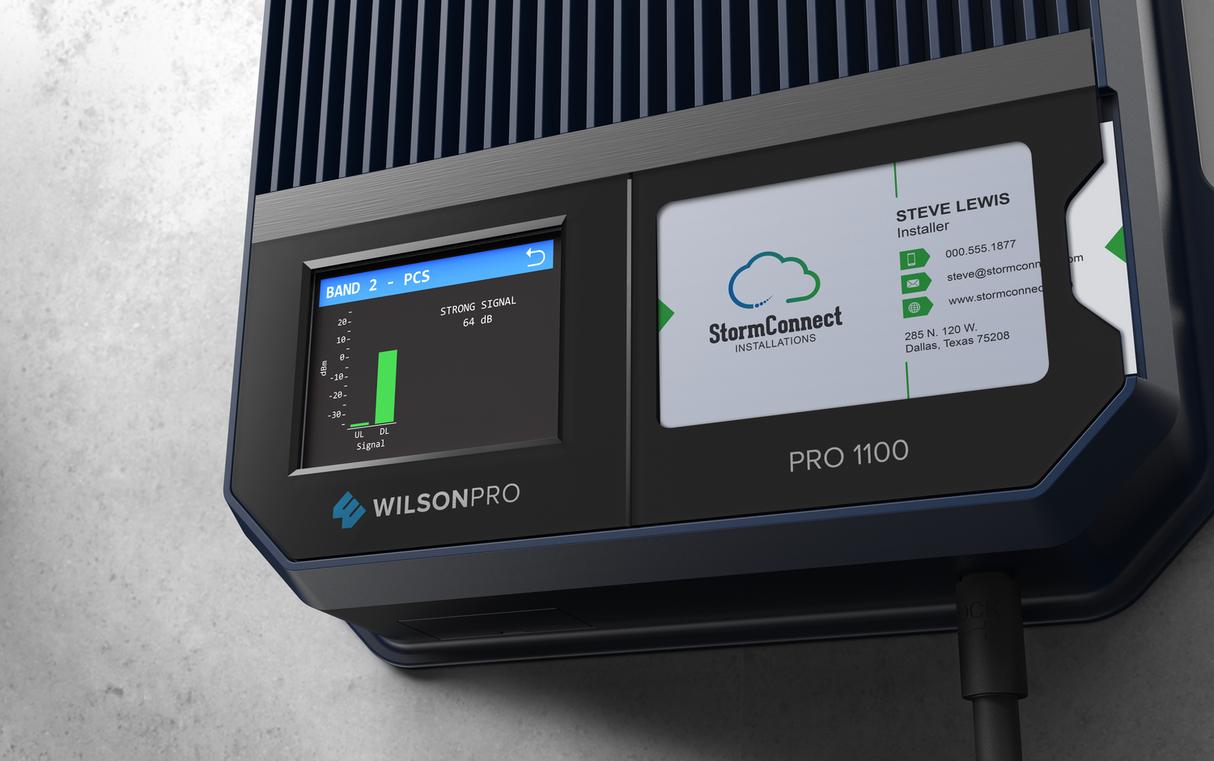

• A touch screen color digital display with built in signal meter that allows the installer to have a complete view of the current signal environement and state of the AGC, with the added ability to turn off individual bands.
• The full kit includes ultra low loss cables, commercial grade internal and external antennas, and a lightning protector kit for additional external surge suppression.

Custom System Design

While the WilsonPro 1100 is sold as a standalone kit, it's really meant to be part of a larger custom system design with a network of inside antennas to distribute the boosted signal throughout the space that requires it. We highly recommend working with our RF experts to have a custom system designed for you, free of charge, to maximize the effectiveness of your new WilsonPro 1100. Please contact us at (888) 974-8237 for more details or to get started.

Coverage Area

The coverage area that a signal booster will provide is directly dependent on the strength of the existing outside cell signal for each of the carriers. The stronger the outside signal, the larger the coverage area that the booster will provide. The weaker the outside signal, the smaller the inside coverage area will be.

You should also keep in mind that there are many other factors that contribute to the overall coverage area, including construction of internal walls, height of ceilings, shape of the building, and more. In order to get the best possible results, it is recommended that you have a custom system designed by our RF engineers, free of charge. Please contact us to get started, or if you would like more information on that service.

• If you have an existing strong 5-bar outside signal, you may receive up to 35,000 sq ft of boosted signal inside the building (requires multiple internal antennas).*
• If you have an existing 3 to 4-bar (-80 dB) outside signal, you may receive up to 7,500 sq ft of boosted signal inside the building.*
• If you have an existing 1 to 2-bar (-95 dB) outside signal, you may receive up to 2,000 sq ft of boosted signal inside the building*.
• If you have no existing outside signal, then a signal booster likely will unfortunately not work in your situation.

Additional Coverage

If you require more coverage than you can get from a single WilsonPro 1100 Enterprise Signal Booster system, it is possible to use multiple kits within the same building or upgrade to the WilsonPro 4000 Enterprise Signal Booster system. If you would like a free system design for your large building, please fill out our custom signal booster system design form or contact us at (888) 974-8237 to get started.

Supported Carriers

The WilsonPro 1100 Enterprise Signal Booster Kit supports all of the networks and carriers in the United States and Canada. For other locations, please consult the frequencies outlined below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

• AT&T 2G, 3G, 4G HSPA+ & 4G LTE
• Verizon 2G, 3G, 4G LTE & XLTE
• Sprint 2G, 3G
• T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
• US Cellular 2G, 3G & 4G LTE
• All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

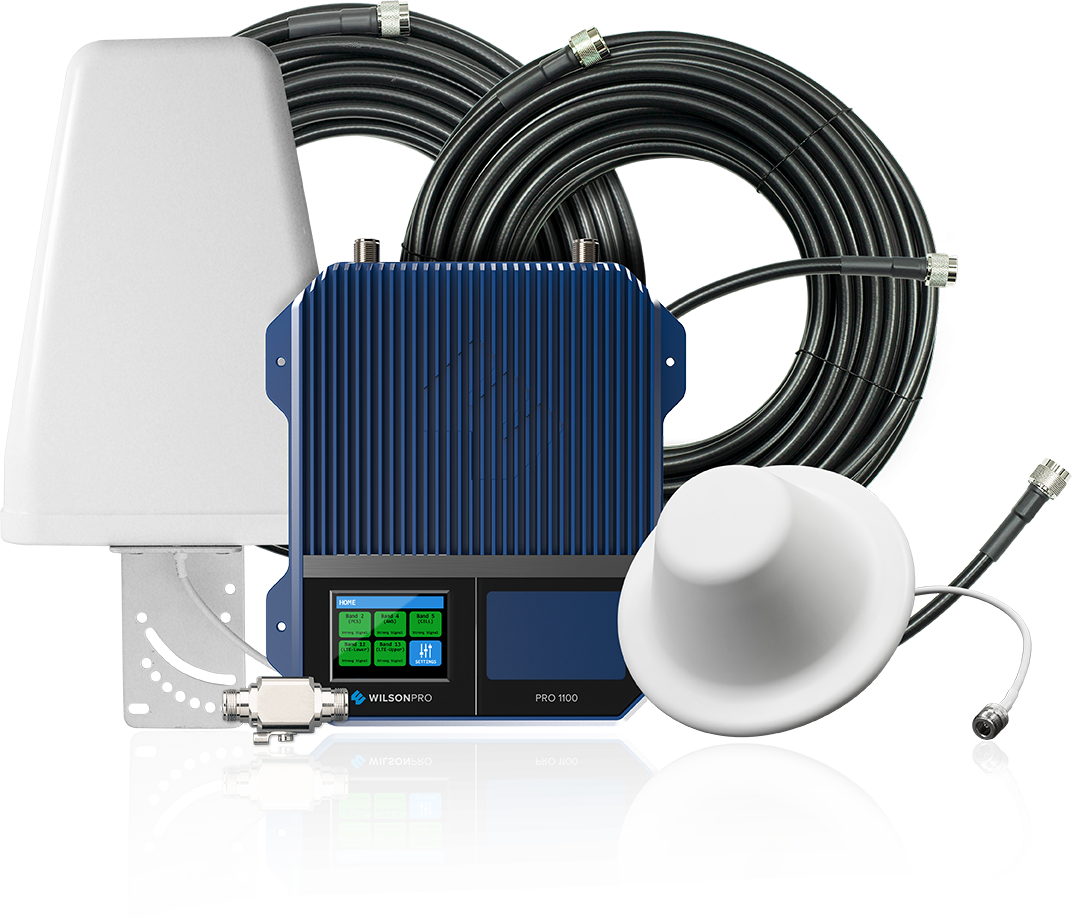

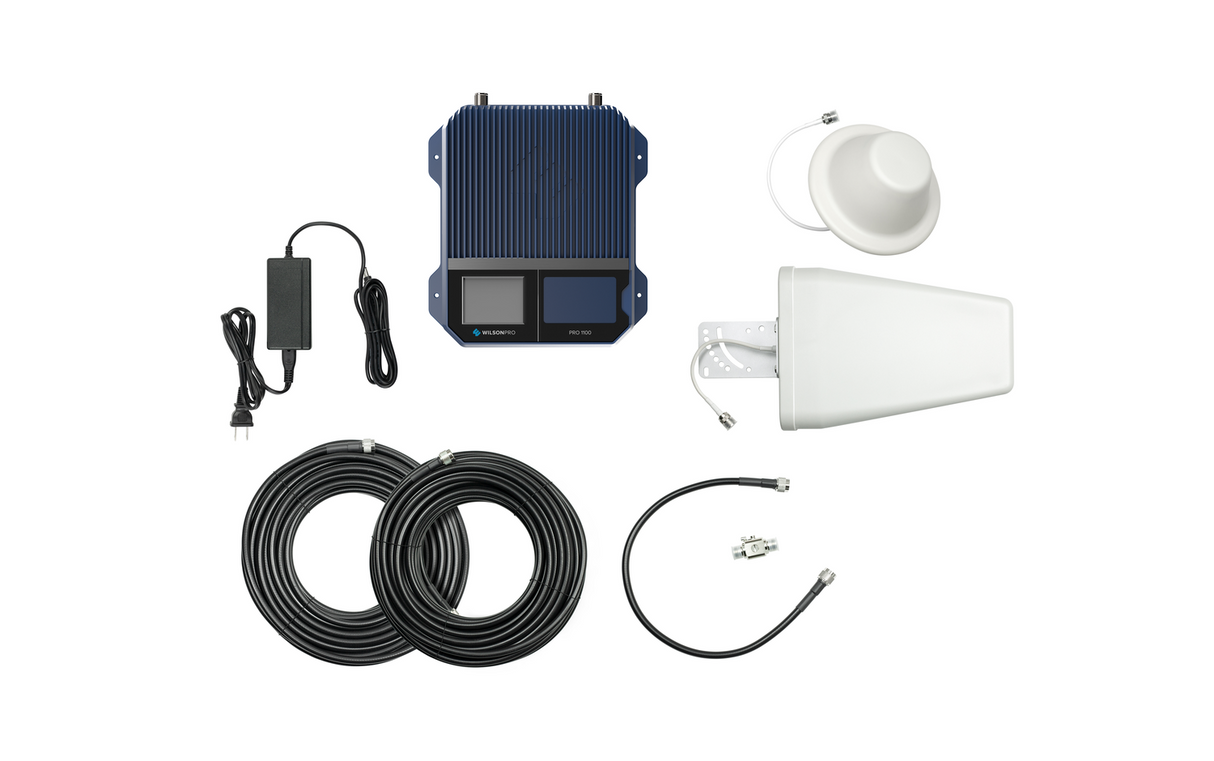

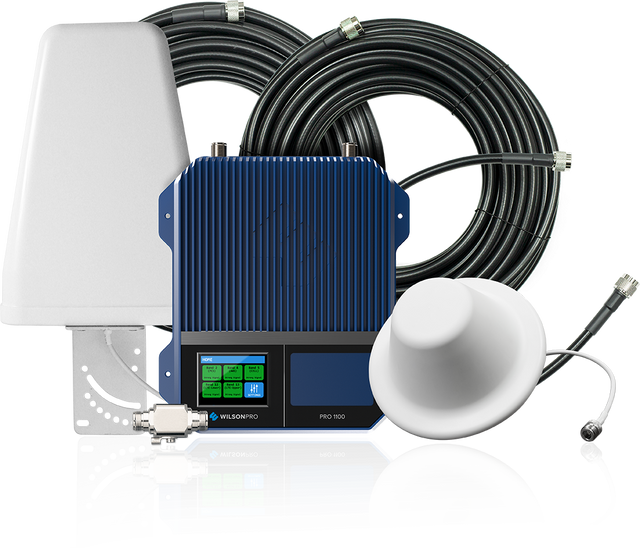

Kit Includes

• WilsonPro 1100 Wall Mountable Amplifier
• Wilson Yagi Directional Outside Antenna
• Wilson Dome Inside Antennas
• 75' Black Ultra Low Loss Cable
• 60' Black Ultra Low Loss Cable
• Wilson Lightning Surge Protector with 2' Black Ultra Low Loss Cable
• AC Power Supply
• Installation Guide

Accessories

While the WilsonPro 1100 Enterprise Signal Booster kit comes with all of the components necessary to install and immediately start boosting signal, the following accessory may be worth considering.

The yagi directional external antenna that is included with the kit is meant to be mounted to a vertical pole that is 2 inches in diameter or less on the roof of the building. Many times there may be an existing pole that can be used, but if not, the Pole Mount Assembly will provide you with a one foot pole to mount the antenna to.

* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
